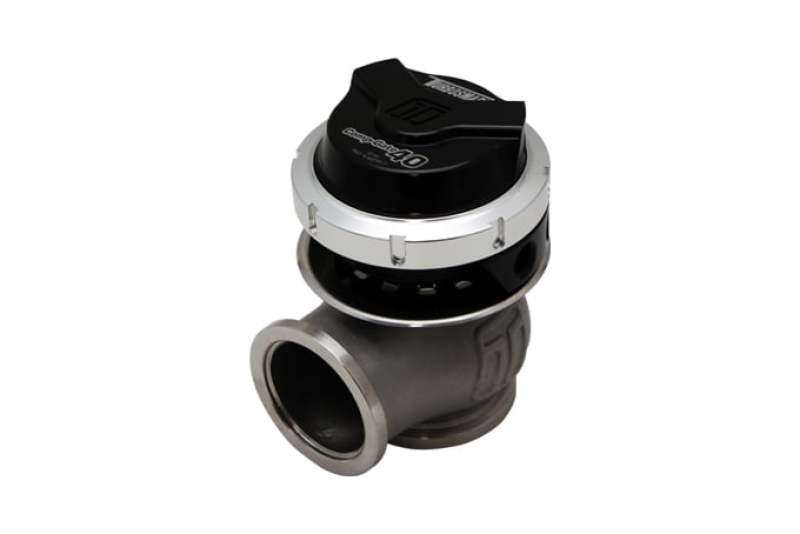

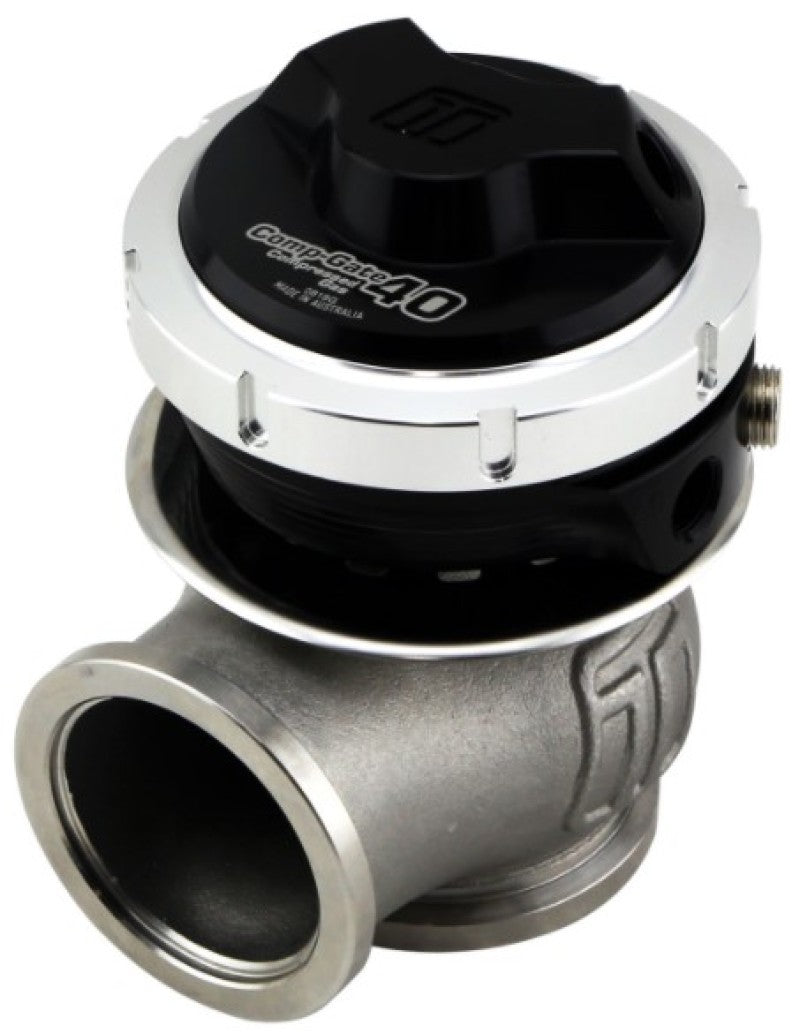

Turbosmart WG40 Gen V CompGate 40mm External Wastegate for Compressed Gas and CO2 Control

GenV CompGate40 CG for Compressed Gas and C02 External Wastegate is designed for control strategies that require a large tuning window and large pressure differentials from the top to lower actuator housings, whereas traditional actuators on poppet style gas can achieve around 2-3x base spring pressure, the CG / C02 Version is capable of extreme multiples of the base pressure through the use of additional reference signal, high-pressure gas and C02.
Optional: Hall Effect Position Sensor Cap Upgrade (TS-0550-3062)

• Class Leading CFD and Bench-Validated Flow Performance


• Nitronic 60 Valve Guide and High Temp 347 SS Body


• Modular Design for Actuator Interchangeability


• Class Leading Thermal Performance


• User Adjustable Actuator Position


• Class Leading Fatigue Resistance


• 17/7 PH Stainless Steel Springs


• Liquid Actuator Cooling Option


• Strap Type V-band clamps

The Turbosmart WG40 Gen V CompGate 40mm External Wastegate (Part Number: TS-0552-1202) is engineered for advanced control strategies requiring wide tuning ranges and significant pressure differentials. Designed specifically for compressed gas and CO2 applications, this wastegate offers exceptional flexibility by utilizing additional reference signals, high-pressure gas, and CO2 to achieve pressure multiples far exceeding traditional poppet-style actuators. Its robust construction incorporates a high-temperature 347 stainless steel body and Nitronic 60 valve guide, ensuring durability under demanding conditions.
Built with a modular design, the WG40 allows for easy actuator interchangeability, enabling quick adjustments to suit various tuning needs. The device features user-adjustable actuator positioning, facilitating precise pressure regulation. It also benefits from class-leading CFD and bench-validated flow performance, ensuring optimal exhaust flow control. The wastegate's thermal performance is enhanced by optional liquid actuator cooling, helping maintain consistent operation during extended use. Additionally, the design includes strap-type V-band clamps for secure mounting and maintenance ease.
Constructed with 17/7 PH stainless steel springs, the WG40 provides superior fatigue resistance, ensuring long-term reliability. Optional upgrades include a Hall Effect position sensor cap, enhancing monitoring and integration with electronic control systems. This product is suitable for automotive applications where high pressure differentials and precise control of compressed gases like CO2 are essential. Please note, this wastegate does not have CARB approval but requires acknowledgment of Prop 65 warning. It is not suitable for air freight shipment and is available in regular stock for quick delivery.

Features:

• Class-leading CFD and bench-validated flow performance for optimal exhaust control

• Nitronic 60 valve guide and high-temperature 347 stainless steel body for durability

• Modular design allows for easy actuator interchangeability

• High thermal performance with optional liquid actuator cooling

• User-adjustable actuator position for precise pressure tuning

• Superior fatigue resistance with 17/7 PH stainless steel springs

• Secure strap-type V-band clamps for reliable mounting

• Designed for high pressure differentials with external reference signals

• Optional Hall Effect position sensor cap for enhanced monitoring
