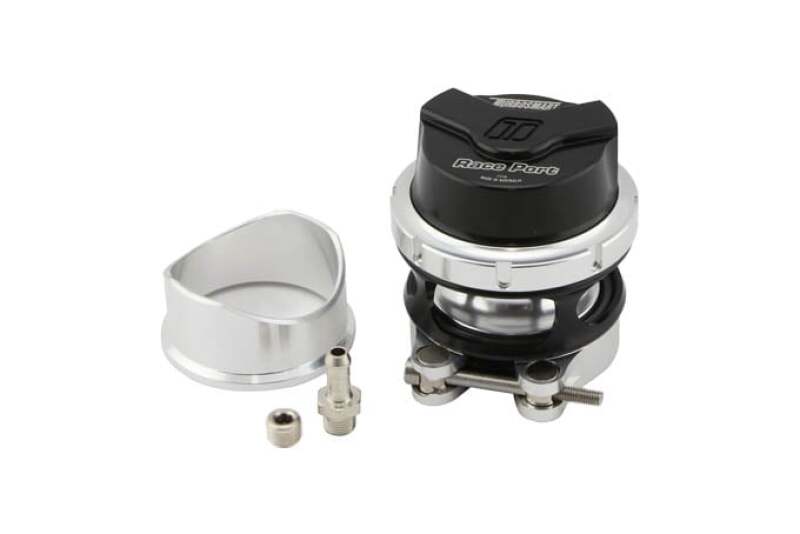

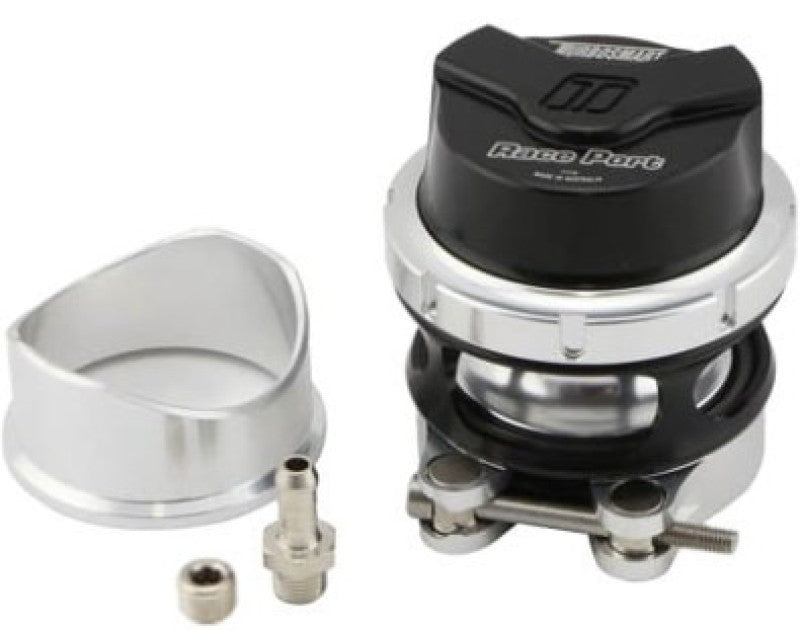

Turbosmart RacePort Series BOV Gen V for Supercharged Engines – Part TS-0204-1152

The RacePort Series Blow Off Valve is famous for being an amazingly small and light BOV for supercharged competition-level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of its type on the market.
The Highest-flowing BOV in the Turbosmart range has just been redesigned and now features our unique collar design.
The Supercharger-Specific RacePort features a softer (4 InHg) spring to stay idle when the supercharger is still producing a boost.

• Milspec Hard-Anodized Valve Guide and Stem


• Billet 6000 Series Aluminum Construction


• Options Valve Position Sensor Upgrade


• Quick Release Aluminum V-Band Collar


• Hi-Temp Silicon Nomex Diaphragm


• 2.0" Inlet flows over 330 CFM


• Twin 1/8"NPT Reference Ports


• Positive Sealing Valve Seat


• Boost Balance Technology

The Turbosmart RacePort Series BOV Gen V is engineered for high-performance supercharged engines, offering a compact and lightweight design without compromising airflow. Crafted from billet 6000 series aluminum with a hard-anodized valve guide and stem, this blow-off valve is built to withstand demanding conditions. Featuring a quick-release aluminum V-band collar and a high-temperature silicon Nomex diaphragm, it ensures durability and ease of installation. With a flow capacity exceeding 330 CFM and twin 1/8" NPT reference ports, it provides optimal venting for competition-level applications. The unique collar design and internal flow structures make this BOV 50% lighter and 25% smaller than comparable models, enabling better vehicle balance and responsiveness. Its soft 4 InHg spring is specifically tuned for supercharger systems, allowing it to stay idle when boost is low and react swiftly when needed. The RacePort's boost balance technology enhances control, ensuring precise pressure regulation and improved throttle response. This high-flow, positive-sealing valve seat guarantees reliable operation under extreme conditions. Whether upgrading your existing setup or building a new high-performance turbo or supercharger system, the Turbosmart RacePort Gen V provides exceptional airflow management and durability for competitive motorsports or enthusiast applications.

Features:

• Milspec hard-anodized valve guide and stem for durability

• Billet 6000 series aluminum construction for lightweight strength

• Option for valve position sensor upgrade for advanced tuning

• Quick-release aluminum V-band collar for fast installation and removal

• High-temperature silicon Nomex diaphragm for reliable operation

• Flow capacity over 330 CFM for maximum venting

• Twin 1/8" NPT reference ports for versatile connections

• Positive sealing valve seat for leak-free performance

• Boost balance technology for precise pressure regulation

• Supercharger-specific soft 4 InHg spring for optimal idle behavior
