Polaris RZR Pro R (Turbo / Supercharged) Stage 3 Clutch Kit

Our S3 recoil clutch kits pack a huge punch!  No matter the terrain, they hit hard and just keep pulling for days. On the trail or at the race you'll notice wicked acceleration and instant clutch response when getting back into the throttle after hammering that corner. In the dunes you'll see the same benefits, but also have much less bogging when climbing that big dune. The machine will hold RPM so you can get where you need to go, and get there faster! Our mud setup will help turn those tires through the thick and deep with much better RPM and wheel speed that's key to climbing out of that hole. We have a huge amount of CVT knowledge, a great passion for the sport, and have many hours into testing different setups in the real world.  We know you'll be extremely pleased with the performance gain from our clutch kits!

The Pro-R comes with the biggest CVT clutch ever fitted on a UTV so far. It has unmatched cooling/airflow to keep the longer belt cool, and some great features. However, this large diameter P90X clutch system still has some flaws. The biggest problem with Pro R clutching is they do not have enough belt grip. Just like the Pro XP/Pro R/RZR Turbo models, the secondary spring is too soft from the factory, but just adding a stiffer spring is not the correct solution. It's the combination of parts that adds correct belt grip.  Our S3 kits help combat this with a custom AA helix and stiffer secondary spring yet for even better belt grip, and the right primary weight/spring to get proper RPM and keep belt grip up in the primary clutch. We go from seeing a ton of black belt marks on the secondary, to almost nothing during long wide open throttle abuse testing.

Our S3 clutch kit for the Pro-R ramps up RPM faster for better acceleration out of the 4 cylinder motor, making them accelerate much faster with quicker response.  Tested thoroughly for max consistency run to run.

Our S3 clutch kit includes our custom cut 1072 helix which is needed for properly transferring the extra power of forced induction kits.  The helix adds a more aggressive shift to the secondary clutch which gives you even better acceleration gains and makes you feel more locked to the rear wheels.  This is extremely important on the Pro R as they seem to rev quite a bit down low, without the feel that the RPM is getting to the tire.  We spent many hours on the dyno and in the field testing different angles to find what works absolutely best.  We found this angle works great with all tire sizes and power levels, a high load specific angle was not needed due to the low range gearing and larger clutches.  Simple weight adjustment settings will get you dialed in on 32-37" tires.  For those consistently running over 450 crank HP, we do have an even more aggressive 1075 helix.

The AA helix has MUCH less roller/ratcheting noise when going from load to unload on the driveline.  Our roller pocket is smaller and without the EBS notch (don't worry they still have great engine braking, especially in low).  This also helps extend secondary clutch roller life.

Our Recoil clutch weights are easily adjustable with simple magnets. They have a custom AA profile, the BEST coating on the market (nitrocarburizing) which has increased wear resistance, improved fatigue strength, and added surface lubricity. These clutch weights also offer great performance and the ability to tune for many different applications or modification in the future, all without the need to buy extra parts. The magnetic weights are the best option to properly place the mass where we need it on the weight for best performance for your application.

An initial setup guideline is included which shows the best setups for most common tire or paddle sizes. This also has brief instructions on installing your clutch kit, and other important information.

1072 Helix: 1072 is the safe bet for any tire or paddle size, but especially larger tires like 35-37". If running 450+HP on 32-33" dirt tires, 1078 helix is required.
2 Seat Models: 32-37" dirt tires or 30-35" paddles
4 Seat Models: 32-37" dirt tires or 30-35" paddles

1075 Helix: All out performance helix for those running 450+HP consistently.
2 Seat Models: 32-37" dirt tires or 32-33" paddles
4 Seat Models: 32-35" dirt tires or light 32-33" paddles

Fits 2022-Up RZR Pro R 4-Cylinder 2 and 4 seat models with Forced Induction (Turbo/Superchargers with 350+HP)

Features:

• Kit designed to work exclusively on forced induction kits (Turbo/Supercharger - 350+HP only)
• Works well with tire sizes 32" to 37" and paddles 30" to 33".
• A must-have when tuning your Pro-R with Forced Induction to properly transfer the power to the wheels and prevent even more belt slip
• A must-have when running larger tires or paddles
• Wicked throttle response when on & off the throttle
• More efficient power transferred to the wheels
• More consistent clutch / vehicle performance
• Cooler running belt temps (especially when running larger tires or paddles!)
• Longer belt and clutch life.
• Easily adjustable if needed
• Very smooth engagement (around 1800-2000 RPM).
• The only special tool needed is our Compression Tool #1

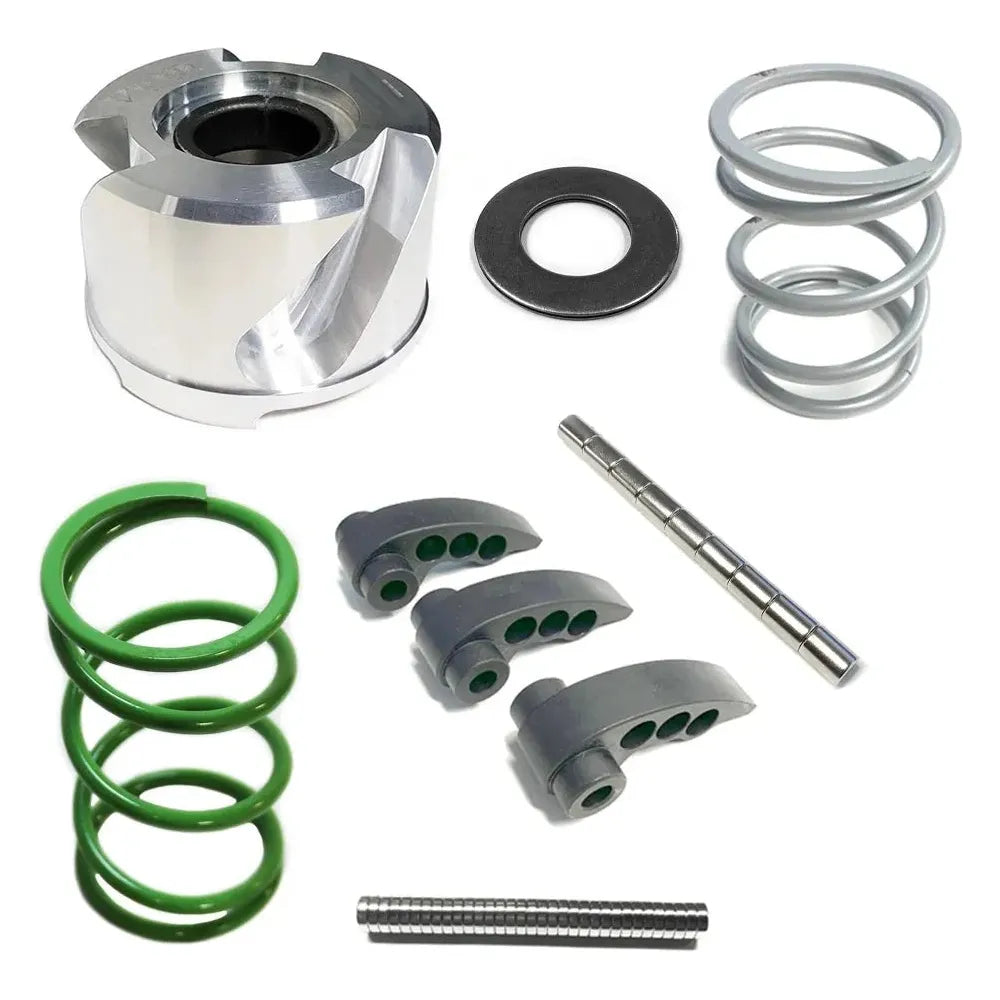

Includes:

• AA Recoil heavy magnetic adjustable clutch weights
• Primary limiter
• Slug magnets
• Setup installation sheet
• Primary spring
• Custom helix
• Secondary spring

NOTE: If running larger tires than listed or gear reduction, please let us know before ordering.

VEHICLE FITMENT

Polaris RZR Pro R (Turbo / Supercharged)

INSTALLATION

Instructions
