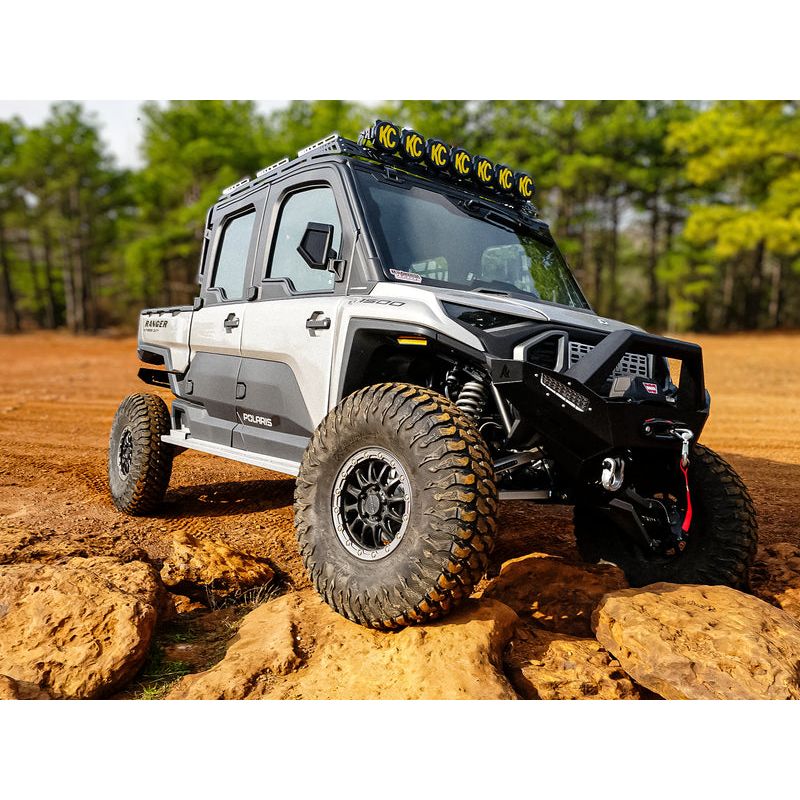

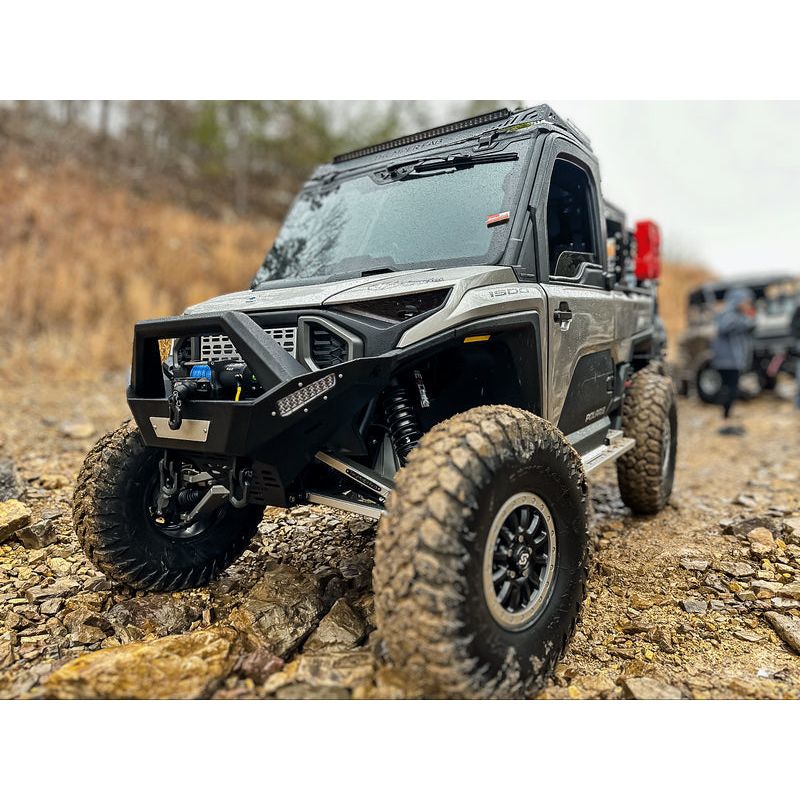

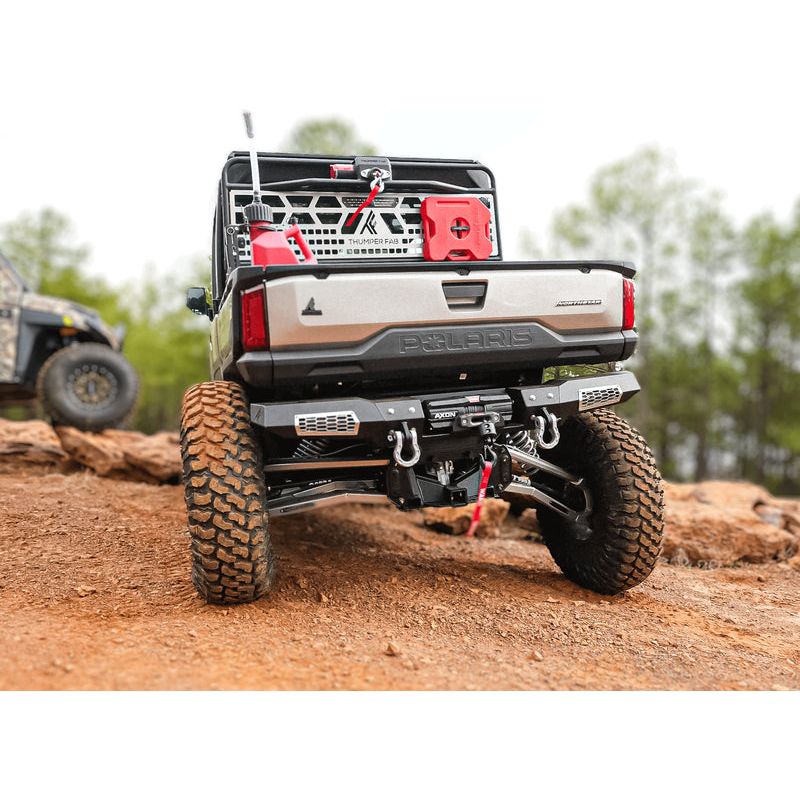

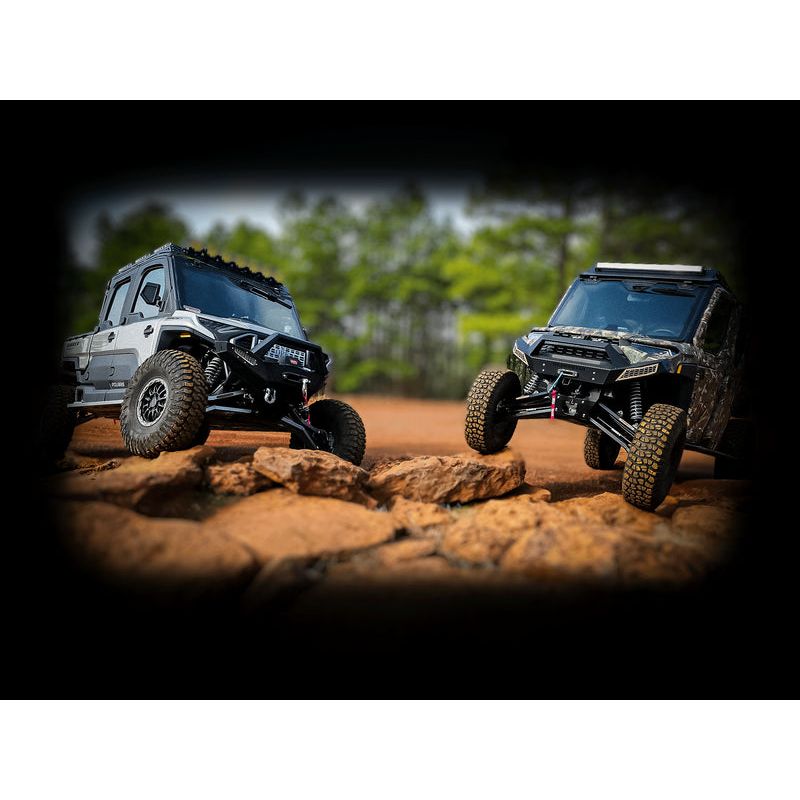

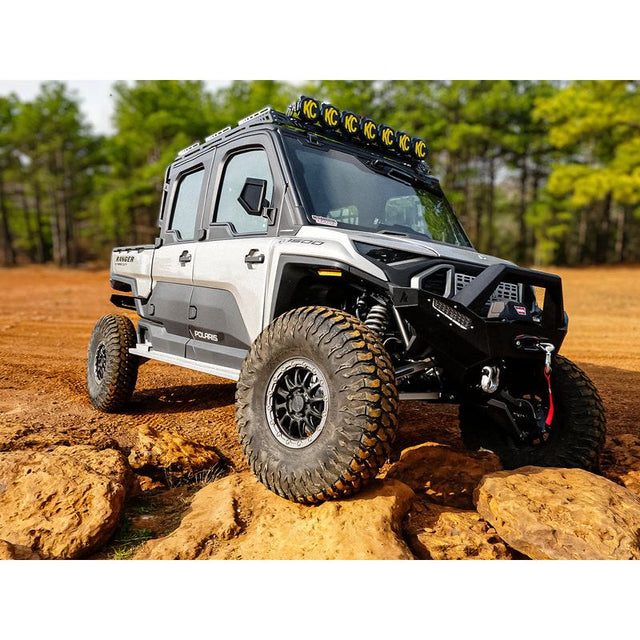

Polaris Ranger XD 1500 Long Travel Control Arms (Raw)

If you're looking to take your Polaris Ranger 1500 XD to the next level, look no further than Thumper Fab's Long Travel Kit. This Long Travel Kit provides greatly improved suspension geometry, larger tire clearance, and improved ride quality. Perfect for extreme trails and provide unmatched performance regardless of the terrain. Strength. Style. Great Ride!

A boxed arm will give you increased torsional strength for the strongest control arm design possible. There is more to a Thumper Fab boxed control arm than meets the eye. Underneath the steel cladding is a skeleton design that adds strength exactly where you need it and saves weight. Strength is important but unnecessary weight increases your unsprung mass and reduces your shock’s ability to compensate. The Thumper Fab design adds strength and reduces weight for optimal ride quality.

We offer professionally installed bushings and ball joints for easy installation. When you select the options below, we take the hassle out of pressing in your bushings and ball joints yourself. Utilizing our precision press operation, we are able to ensure your bushings and ball joints are correctly installed and not hammered or pressed in a way that would reduce their quality and lifespan.

Uniball – Our uniball bearing replaces the use of a ball joint for extreme levels of performance and strength. Commonly used in harsh racing conditions. Our patent pending control arm design allows you to run either a uniball or a ball joint for your desired use!

Reuse bushings and ball joints – You also have the option to reuse your OEM bushings and ball joints. Maybe your Ranger 1500 XD is brand new or in great shape. Our patent pending control arms allow the choice to reuse your OEM hardware. We do recommend professional installation and the use of a press to ensure your original equipment can be removed and installed without damage.

We make it EASY to install this entire kit! We provide complete Cobra Axle replacement axles with inner and outer CVs that come fully assembled. Both of these axles are COMPLETE with no need to disassemble and reassemble your OEM axles with longer bars. Rzeppa style CV’s that will achieve high angles, articulate freely with no binding and extend further than stock axles. We use the highest quality CV boots to keep the elements out and the grease in.

Axle Options:

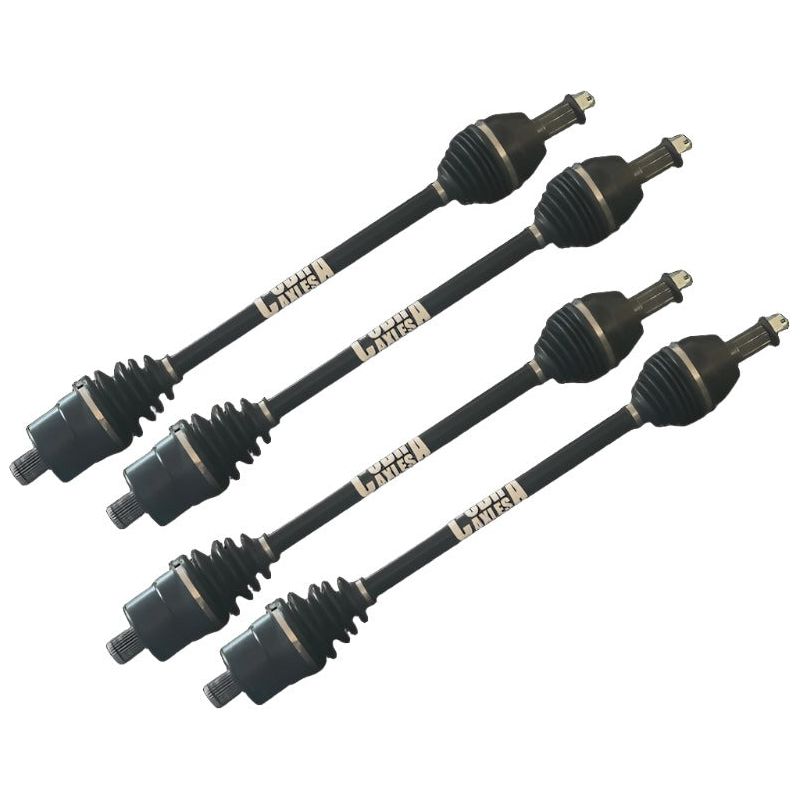

Cobra HD

• Oversized components featuring our propriety combination of materials for a well-balanced, cost-effective axle.
• Rzeppa style CV’s that will achieve high angles, articulate freely with no binding and extend further than stock axles.
• We use the highest quality CV boots to keep the elements out and the grease in.

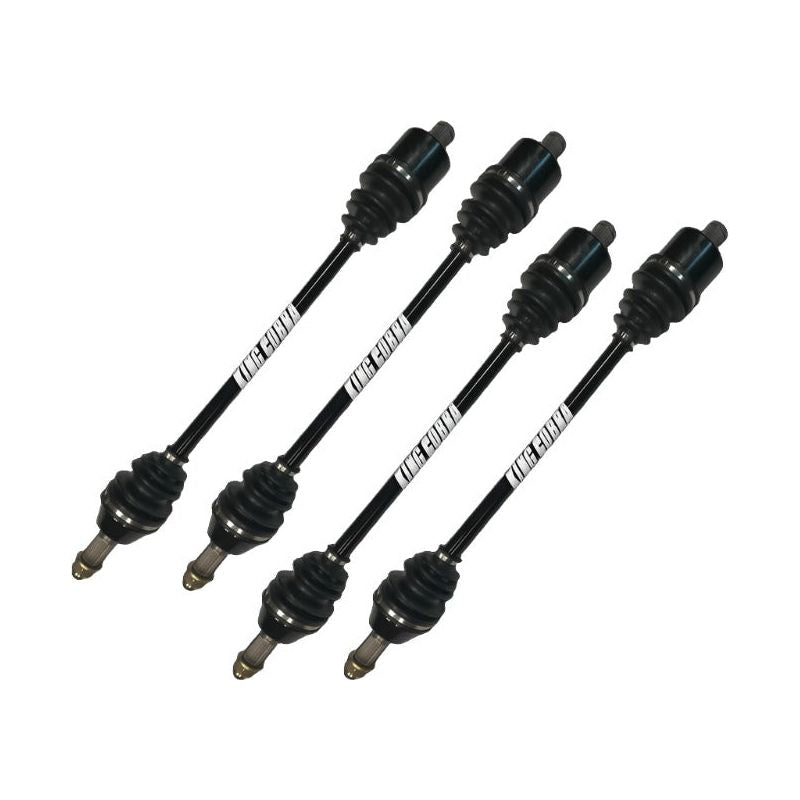

King Cobra (The Best of the BEST)

• American made components using a combination of High Strength Steel.
• Our high-performance CV grease “VENOM” comes standard in all King Cobras.
• Rzeppa style CV’s that will achieve high angles, articulate freely with no binding, and extend further than stock axles.
• The shaft itself will allow for a high degree of twist BEFORE and AFTER yield point is reached to absorb high impact scenarios and keep you on the trail.
• We use the highest quality CV boots to keep the elements out and the grease in.

Features:

• Increased tire clearance (up to 36”)
• CNC Laser Cut & Formed US Steel for precision fitment
• Easy bolt on installation using factory suspension mounts
• High clearance design for added ground clearance
• Reuse OEM bushings and ball joints or upgrade to our installed options
• Compatible with factory sway bar
• Extreme Duty 3 stage powder coating (when color is selected)
• Patent Pending design allows for use of a uniball or ball joint
• Made in the USA
• Backed by our Lifetime Warranty

Specs:

• Material: American Made Steel
• Width: Adds 8” over OEM width
• Ground Clearance: Adds 3” over stock
• Increased Suspension Travel. 15” Front, 14.5” Rear

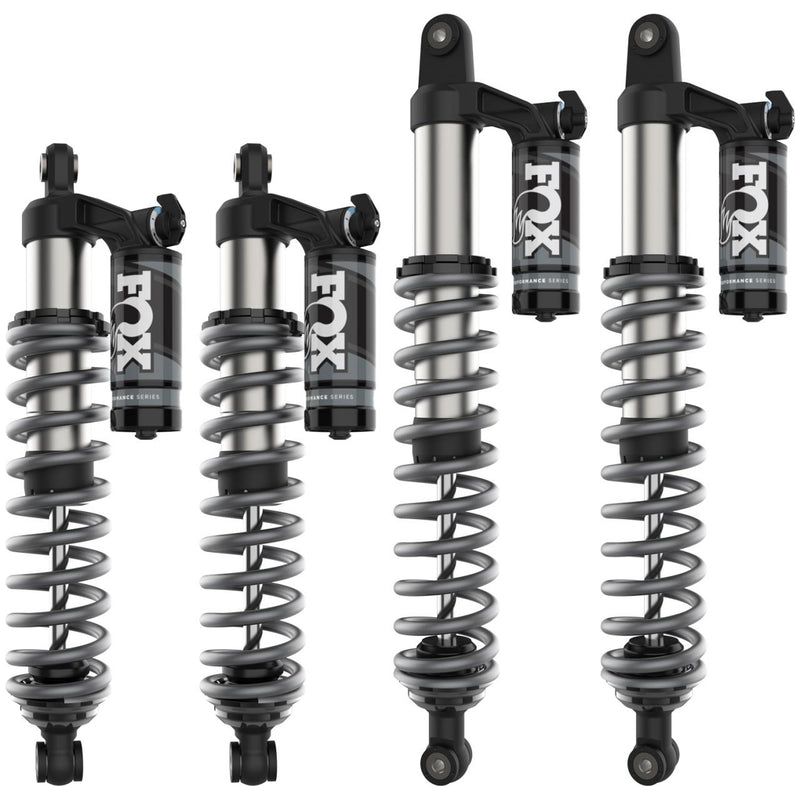

• Shocks: FOX or Compatible with OEM shocks (when OEM shock option selected)

Includes:

• Long Travel A-Arms Front
• Long Travel A-Arms Rear
• HD Tie Rods
• Stainless Steel Braided Brake Lines Front & Rear
• Complete Replacement Axles (Cobra or King Cobra)
• Compatible with factory sway bar
• Extreme Duty 3 stage powder coating (when color is selected)
• Patented design allows for use of a uniball or ball joint

VEHICLE FITMENT

• 2024 Polaris Ranger XD 1500 Premium
• 2024 Polaris Ranger CREW XD 1500 Premium
• 2024 Polaris Ranger XD 1500 NorthStar Edition Ultimate
• 2024 Polaris Ranger XD 1500 NorthStar Edition Premium
• 2024 Polaris Ranger CREW XD 1500 NorthStar Edition Ultimate
• 2024 Polaris Ranger CREW XD 1500 NorthStar Edition Premium

INSTALLATION

Instructions Click Here
