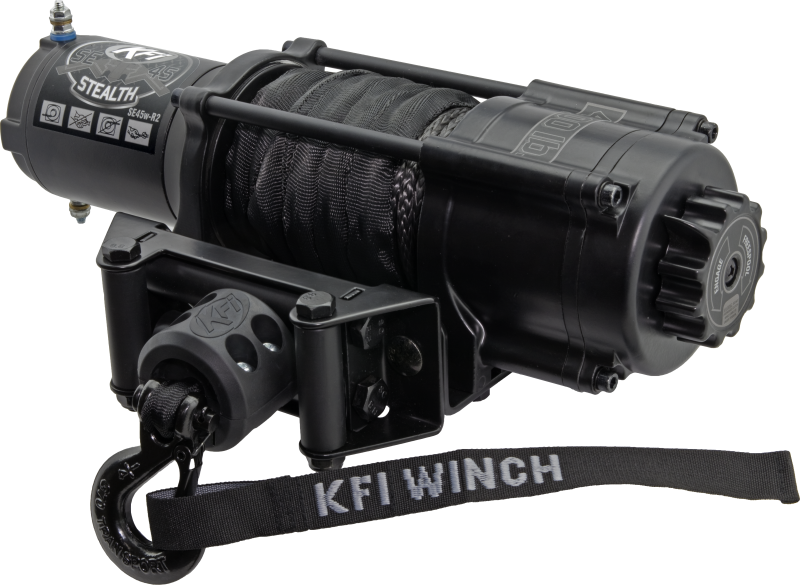

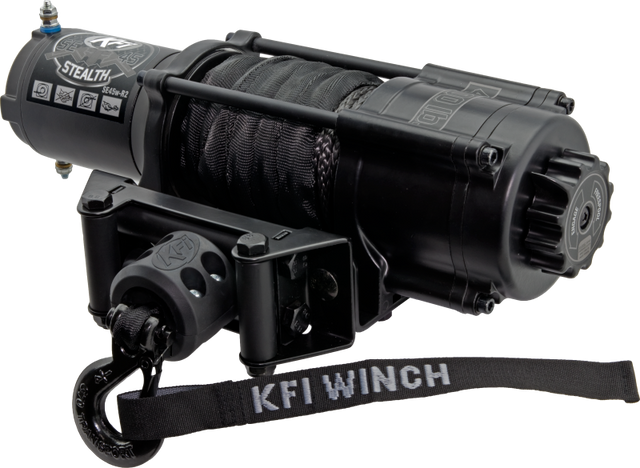

KFI Winch 4500 UTV Series Wide

Features water-resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty, all metal, cam-activated freespool clutch. Equipped with a 12-Volt DC, 1.7hp permanent magnet motor and 166:1 ratio planetary gear system rated to pull up to 4,500 lbs., with dynamic and mechanical braking.

• Control: Deluxe, handlebar-mounted, mini-rocker control switch with optional dash mount bracket and a heavy-duty corded remote switch


• Gear/Transmission: All-metal, planetary gear drive


• Clutch: All-metal, cam activated freespool


• Motor: 12-Volt DC, 1.7hp permanent magnet


• Synthetic cable: 15/64 in. D x 52 ft. L


• Fairlead: Multi-directional roller


• Drum Size: 2 in. D x 3.19 in. L


• Brake: Dynamic and Mechanical


• Rated line pull: 4,500 lbs.


• Gear ratio: 166:1
