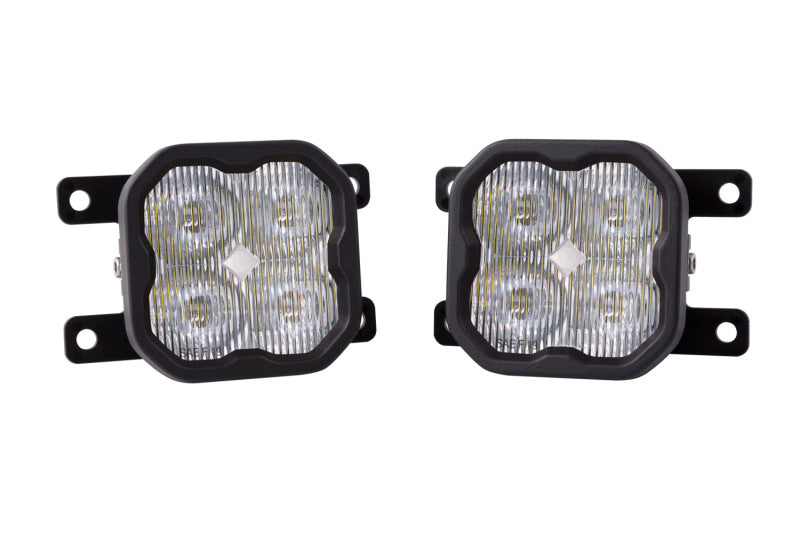

Diode Dynamics SS3 Sport Type AS Kit ABL - White SAE Fog

Features

Advanced TIR optics provide high efficiency and focus
SAE-compliant road-legal output
Includes round bezel, for factory-style appearance
Plug and play, no modification needed
Durable powdercoated aluminum extrusion
Engineered and Assembled in USA


Overview
Overview. Upgrade your fog lights with our SS3 Type AS Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included with the kit, allowing you to connect the lights to your factory bulb sockets - no additional wiring needed!
Backlight Functionality. The Stage Series 3in LED Pod is now available with a distinctive backlight, in a brilliant amber color. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Upgrade your fog lights with our SS3 Type AS Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality.

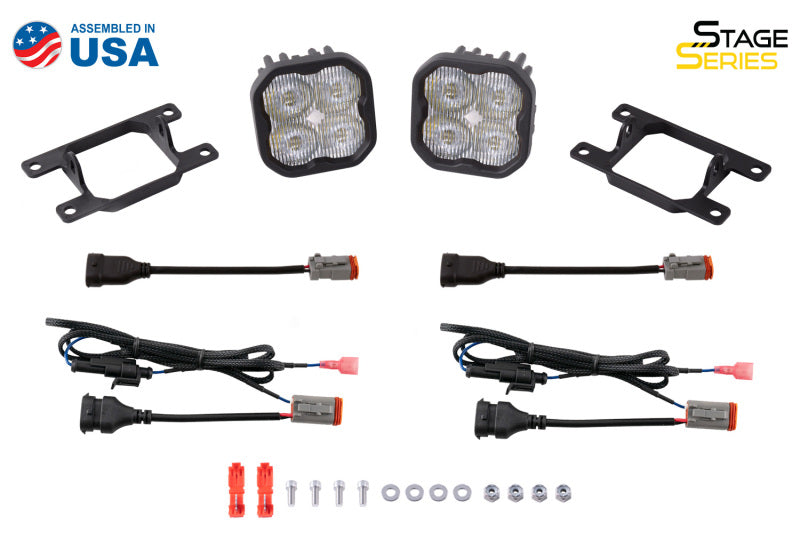

Included in the box: Two (2) SS3 3inch Standard LED Pods. Two (2) Type A brackets. Two (2) H11 2-pin DT adapters. One (1) H11 4-pin DT backlight tap wire kit. Mounting hardware. Mounting guide.

• Advanced TIR optics provide high efficiency and focus


• Durable powdercoated aluminum construction


• High-intensity automotive-type LEDs


• Integrated Deutsch-style connector


• Pin-fin heatsink design

Fitment:
2009 Ford Focus
2010 Ford Focus
2010 Ford Transit Connect
2011 Ford Focus
2011 Ford Transit Connect
2012 Ford Focus
2012 Ford Transit Connect
2013 Ford Focus
2013 Ford Transit Connect
2014 Ford Focus
2014 Ford Transit Connect
2015 Ford Transit Connect
2016 Ford Transit Connect
2017 Ford Transit Connect
2018 Ford Transit Connect
2019 Ford Ranger
2019 Ram 1500
2019 Subaru Ascent
2020 Ford Ranger
2020 Ram 1500
2020 Subaru Ascent
2021 Ford Bronco
2021 Ford Ranger
2021 Ram 1500
2021 Subaru Ascent
2022 Ford Bronco
2022 Ford Ranger
2022 Ram 1500
2022 Subaru Ascent
2023 Ford Bronco
2023 Ford Ranger
2023 Ram 1500
2024 Ram 1500
