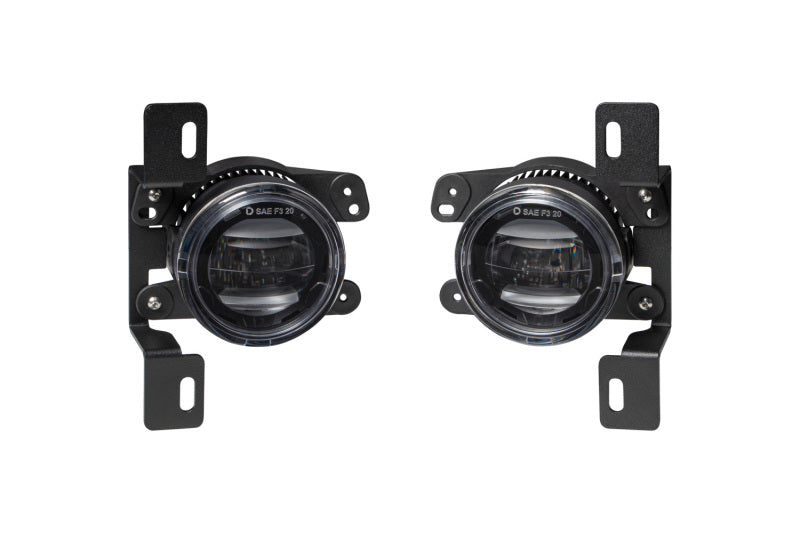

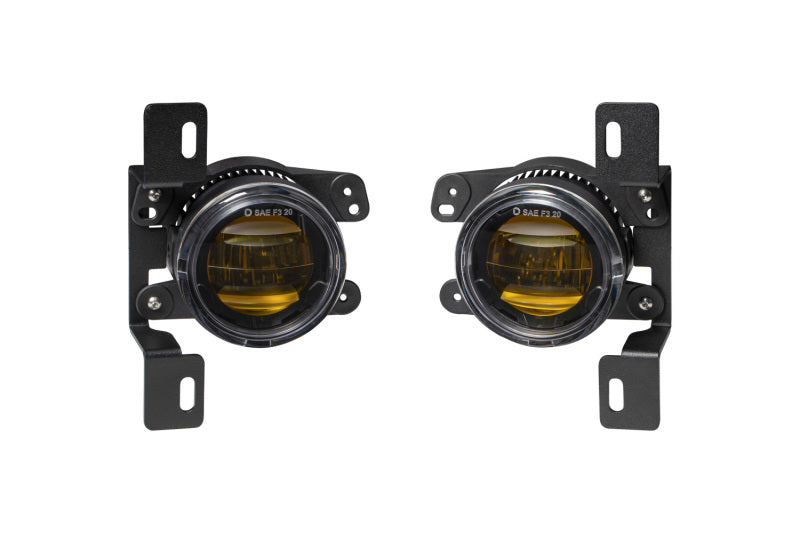

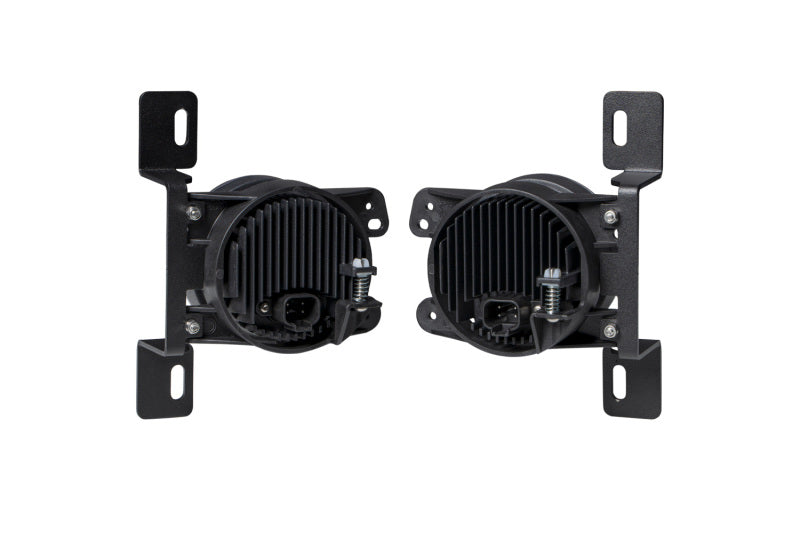

Diode Dynamics Elite Series Type MR Fog Lamps - Yellow (Pair)

Features

High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide, intense light output
Distinctive integrated amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam, no modification needed
Engineered and assembled in USA


Overview
Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light delivers up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.
Output that Outperforms. The Elite Series Fog Lamp optic produces a light pattern that is wider than any other aftermarket fog lamp on the market, with an 80-degree spread of highly intense light. Even with this extremely wide band of light, the pattern is extremely smooth throughout, with an extremely sharp cutoff to avoid glare to other drivers, including a BMW-style “color flicker” at the very edge of the pattern. Diode Dynamics engineers accomplished all this while still meeting SAE F3 fog light standards, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
Backlight Functionality. All Elite Series Fog Lamps come standard with an integrated amber accent light. This backlight feature fully illuminates the main lens with amber LEDs. This feature can be wired to any constant 12-volt source for your desired vehicle function, using the included tap connector. It will shut off automatically if the main beam is activated. Check local laws and regulations for acceptable use.
The first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards.

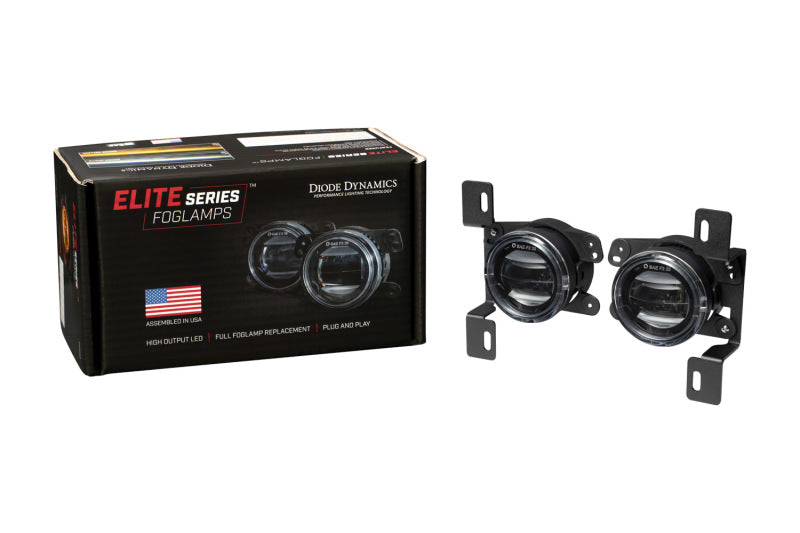

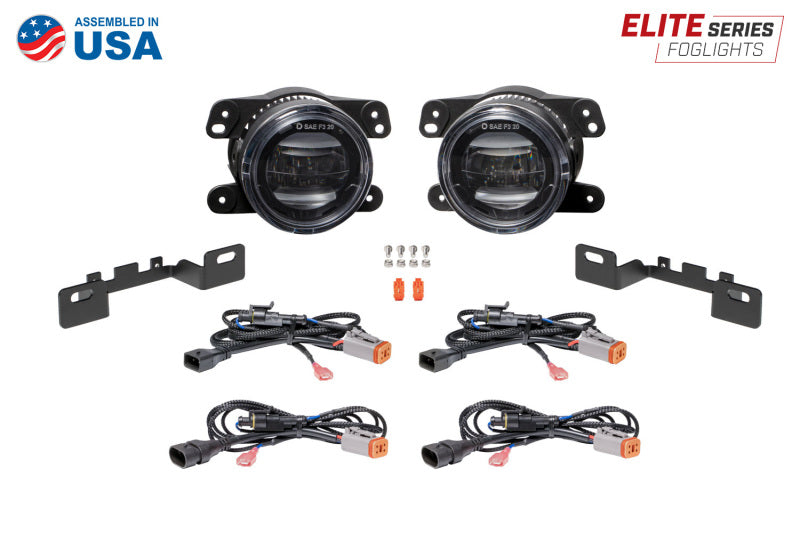

Included in the box:
Two (2) Elite Series Type M fog lamps
Two (2) Elite Series Type MR brackets
Two (2) 9006 4-pin DT backlight tap wires
Two (2) 5202 4-pin DT backlight tap wires
Two (2) T-taps
Mounting guide

• Custom-engineered optic provides extremely wide intense light output


• Plug and play main beam no modification needed


• Road-legal fog light (SAE F3 compliant)


• High-performance OEM-grade replacement


• Distinctive amber backlight

Fitment:
2007 Jeep Wrangler
2008 Jeep Wrangler
2009 Jeep Wrangler
2010 Jeep Wrangler
2011 Jeep Wrangler
2012 Jeep Wrangler
2013 Jeep Wrangler
2014 Jeep Wrangler
2015 Jeep Wrangler
2016 Jeep Wrangler
2017 Jeep Wrangler
2018 Jeep Wrangler
2019 Jeep Wrangler
2020 Jeep Gladiator
2020 Jeep Wrangler
2021 Jeep Gladiator
2021 Jeep Wrangler
2022 Jeep Gladiator
2022 Jeep Wrangler
2023 Jeep Gladiator
2023 Jeep Wrangler
2024 Jeep Gladiator
2024 Jeep Wrangler
