Can Am X3 Catch Can

We're proud to release to you another performance product our new Vent to atmosphere catch can assembly. Catch cans are very useful on most boosted and non boosted vehicle applications. The vented system reduces crankcase pressure, as well as captures crankcase blow-by from entering the vehicles intake manifold, intercooler and intercooler piping. Oil built up in these components reduces the efficiency of their cooling capabilities and reduces performance.

This product is designed and tested for Can-Am Maverick X3, although this isnt limited to this vehicle, the components included are designed around that usage.

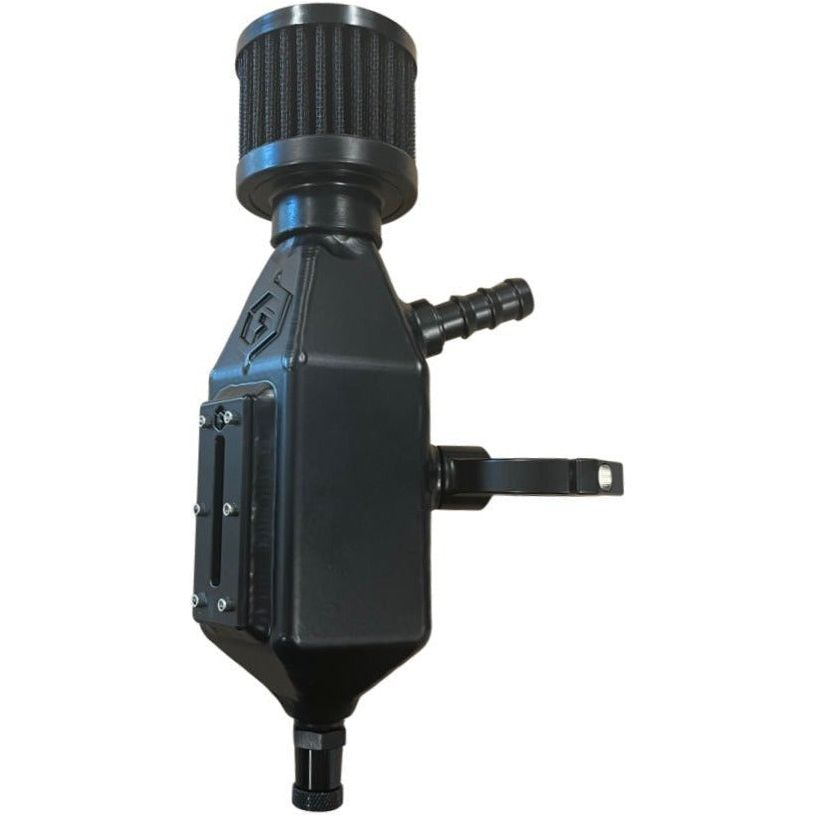

Some of the notable features and benefits of our catch can are the Billet sight glass assembly, Billet Drain plug, and clockable mounting clamp.

the sight glass assembly allows for you to easily see the level of fluid captured by the can to allow for draining when needed, using our threaded ORB fitting that functions similarly to a brake bleed valve, except this uses an O-ring to seal instead of the chamfered AN face. the threaded internal face of the drain allows for a remote mounted hose to easily drain the fluids from can away from clutching and suspension components to avoid the mess. Our adjustable tube mount is designed for 1.87" DIameter tubing and allows for you to adjust the mount to clamp the can to where it is better suited for your setups needs.

The Geiser catch can is internally baffled and uses steel/mesh wool to capture the fluid and allow it to drain into the can to prevent it from blowing out the filter.

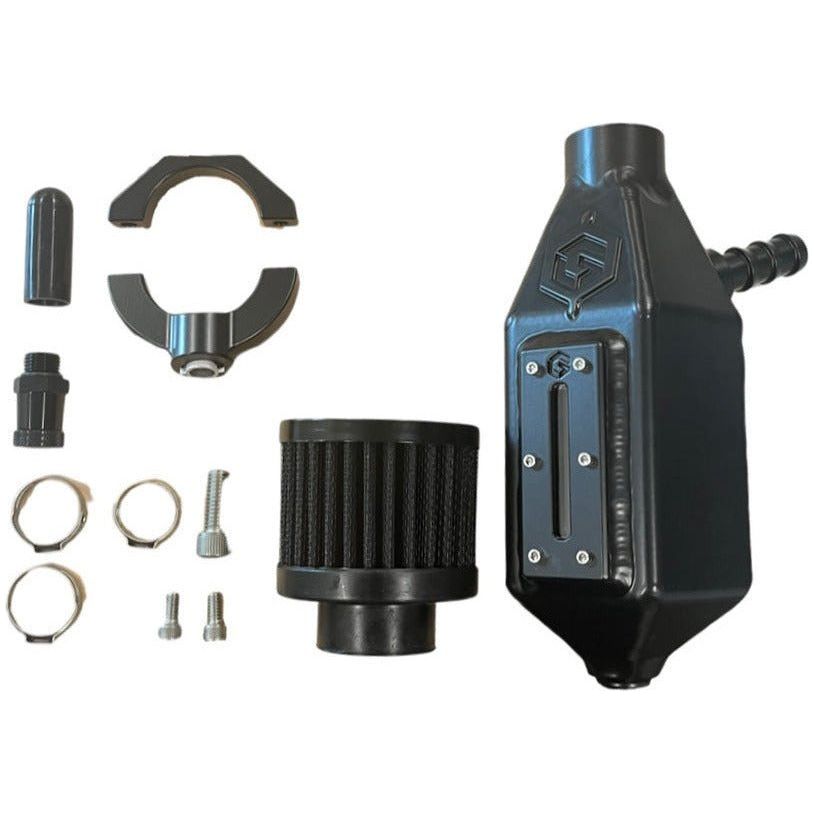

Includes:

• CATCH CAN ASSEMBLY (SIGHT GLASS/FILTER ARE PRE-ASSEMBLED)
• OETIKER CLAMPS FOR INSTALLATION
• 5/8" ID HOSE FOR BREATHER LINE
• SILICON RUBBER PLUG FOR RECIRC BARB ON INTAKE HOSE
• BILLET CLAMP COMPONENTS
• STAINLESS MOUNTING HARDWARE FOR CLAMP

VEHICLE FITMENT

Can Am Maverick X3
