ARB Part Number 813401 Galvanized Awning L Bracket - Heavy Duty Roof Bar Mounting Solution

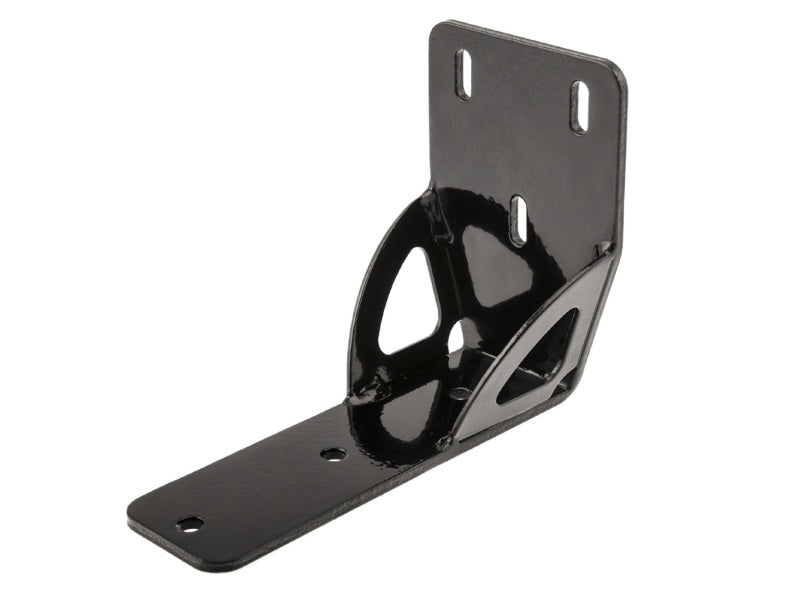

The OS850 awning bracket is designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off road or under extreme conditions. Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the OS850 awning bracket is 50 mm wide allowing it to fit over both Thule SquareBar and Rhino Heavy Duty in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar and AeroBar or Rhino Heavy Duty. Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning. The 813402 awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer. Units are now in stock with additional shipments due mid June. The current awning bracket P/No OS3071 has recently been upgraded from 3mm to 4mm construction however it is considered lighter duty and designated for highway use.
ARB Awning Bracket; Galvanized; L Bracket;

• Galvanized Finish


• Awning L Bracket


• Awning Bracket

The ARB 813401 galvanized awning L bracket is engineered for durable and versatile mounting of awnings on off-road vehicles and under demanding conditions. Crafted with welded gussets, this bracket provides enhanced strength and stability when attached to roof bars, ensuring secure support during rugged adventures. Its zinc-plated and powder-coated finish offers excellent corrosion resistance, making it suitable for exposure to harsh environments. Designed to accommodate both upright and inverted mounting configurations, the bracket measures approximately 6.5 inches long and 3 inches wide, fitting over various roof bar types such as Thule SquareBar, Rhino Heavy Duty, and Thule AeroBar. The pre-drilled holes for 8mm bolts, with recommended use of at least two or three bolts for optimal strength, allow flexible installation options. The outer bolt hole between the gussets must be used for the gusset's effectiveness, and three slotted 6mm holes are provided to attach the awning securely. Please note that hardware is not included, and it is advisable to use T-bolts or channel nuts supplied by the roof bar manufacturer for proper fitment. This high-quality, galvanized awning bracket is ideal for off-road enthusiasts seeking a reliable mounting solution that withstands extreme conditions and heavy use. The ARB L bracket's robust construction and thoughtful design make it a dependable component for mounting awnings on a variety of vehicle roof bars, ensuring safety and stability during outdoor adventures. Whether mounted upright or inverted, this bracket is a vital accessory for those looking to expand their vehicle's outdoor capabilities with confidence.

Features:

• Galvanized finish for corrosion resistance

• Heavy-duty welded gussets for added strength

• Compatible with Thule SquareBar, Rhino Heavy Duty, and Thule AeroBar

• Designed for upright or inverted mounting configurations

• Pre-drilled holes for 8mm bolts with recommended multiple bolt mounting for maximum strength

• Includes three slotted 6mm holes for secure awning attachment

• Durable construction suitable for off-road and extreme conditions
