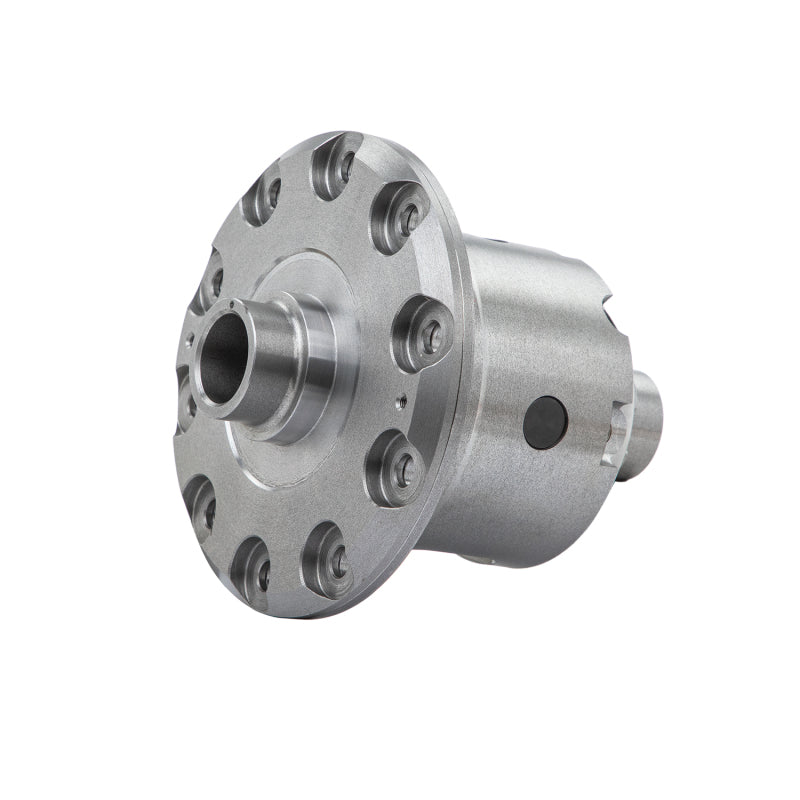

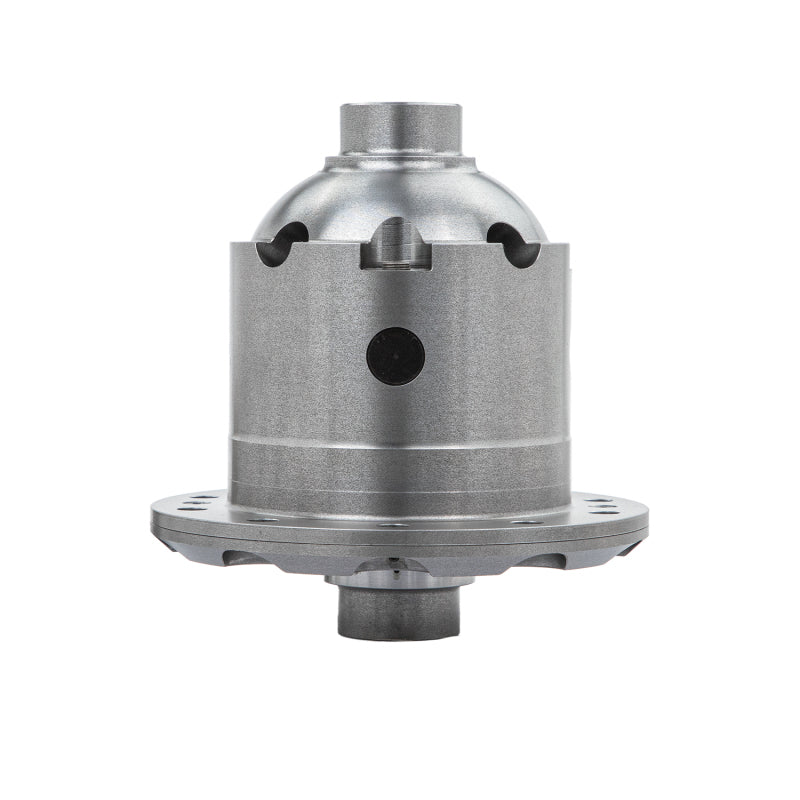

ARB AirLocker 30-Spline Differential for GM 8.5-Inch Ring Gear - 10 Bolt Pattern

The world's premier traction aid, an ARB Air Locker(TM) keep you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment and its super strong design allows activation at any speed allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.
ARB Air Locker Differential; Shaft Spline 30; Ratio All; 10 Bolt; AAM860; 8.5 in. Diameter Ring Gear;
GM8.5IN 10BOLT AAM860 S/N..

• Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat


• Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth


• Two-piece design is ultra-durable and extremely strong ? minimal moving parts ensure maximum reliability

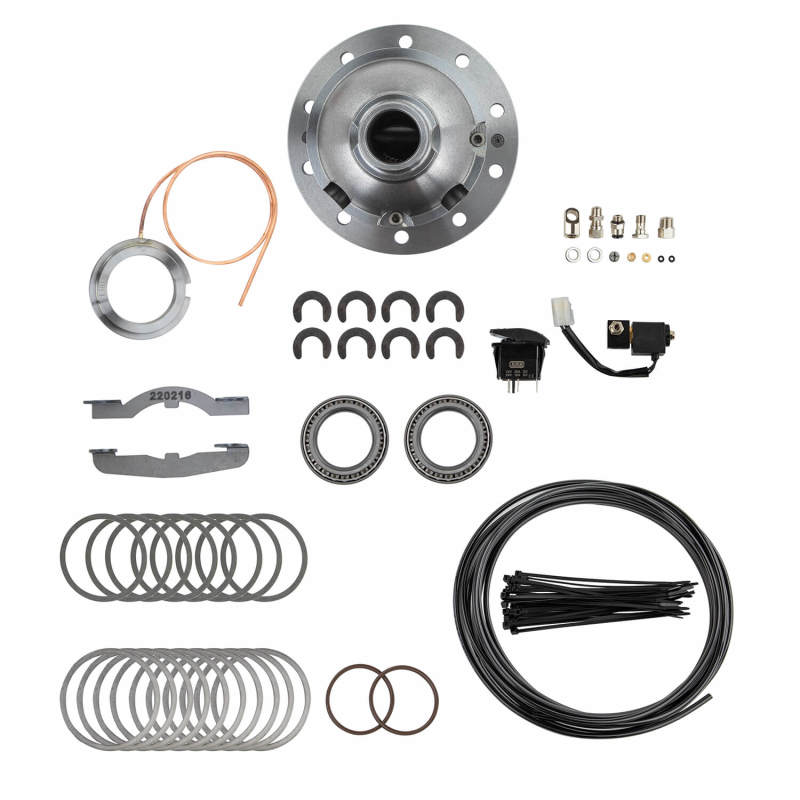

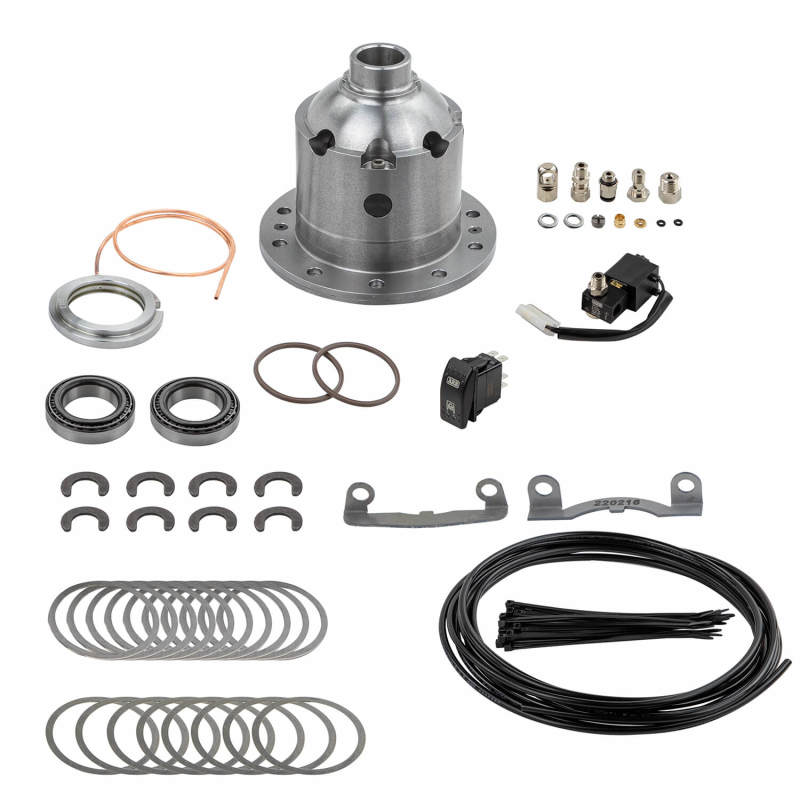

• Kit includes: Air Locker differential, activation switch, solenoid valve, air line and bulkhead fitting


• Provides 100 percent traction on demand without affecting on-road drivability or driveline wear


• Patented ?timed' locking mechanism offers high strength and ultra-fast unlocking


• Employs Minimal Moving Parts Ensuring Maximum Reliability


• Air compressor required for operation (sold separately)

The ARB AirLocker 30-Spline Differential provides unmatched traction and control for off-road enthusiasts and professional drivers alike. Designed specifically for vehicles equipped with an 8.5-inch ring gear and a 10-bolt pattern, this locker is engineered to deliver instant, reliable lock-up at the flick of a switch, ensuring maximum grip in challenging terrain. Its pneumatically operated locking mechanism prevents the internal gears from rotating independently, effectively tying both wheels together for superior traction. This system allows drivers to conquer mud, snow, rocks, and steep inclines with confidence and ease. When disengaged, the AirLocker functions as a conventional open differential, providing smooth on-road handling and reducing driveline wear. The versatility of this locker makes it suitable for a range of vehicles, including various Chevrolet Blazer models from 1989 to 2001, providing an excellent upgrade for off-road and overland applications. The kit includes the differential unit, activation switch, solenoid valve, air line, and bulkhead fitting, offering a complete solution for installation and operation. The durable, two-piece design features minimal moving parts, ensuring maximum reliability and longevity even in extreme climatic conditions. An air compressor is required for activation and is sold separately, allowing users to customize their setup based on specific needs. With its patented timed locking mechanism, the ARB AirLocker offers ultra-fast unlocking and high strength, making it the preferred choice for serious off-road driving and demanding terrain. This differential maintains excellent on-road drivability while providing 100% traction on demand, reducing vehicle damage and environmental impact during tough conditions. Whether navigating rugged trails or tackling winter roads, the ARB AirLocker is a dependable, high-performance solution for enhancing vehicle capability and safety.

Features:

• Instant lock and unlock with the flick of a switch for maximum convenience

• Pneumatically operated locking system prevents differential gear rotation

• Provides 100% traction on demand for challenging terrains

• Durable, steel-reinforced elastomer bonded annular seal withstands extreme temperatures

• Two-piece ultra-durable design with minimal moving parts for enhanced reliability

• Includes differential, activation switch, solenoid valve, air line, and bulkhead fitting for complete installation

• Operates seamlessly in off-road conditions without affecting on-road drivability

• Patented timed locking mechanism offers fast unlocking and high strength

• Compatible with Chevrolet Blazer and S10 models from 1989 to 2001

• Requires an air compressor (sold separately) for activation

Fitment:
1982 Chevrolet G10
1982 Chevrolet K10
1982 Chevrolet K10 Suburban
1982 Chevrolet K5 Blazer
1982 GMC Jimmy
1983 Chevrolet G10
1983 Chevrolet K10
1983 Chevrolet K10 Suburban
1983 Chevrolet K5 Blazer
1983 GMC Jimmy
1984 Chevrolet G10
1984 Chevrolet K10
1984 Chevrolet K10 Suburban
1984 Chevrolet K5 Blazer
1984 GMC Jimmy
1985 Chevrolet G10
1985 Chevrolet K10
1985 Chevrolet K10 Suburban
1985 Chevrolet K5 Blazer
1985 GMC Jimmy
1986 Chevrolet G10
1986 Chevrolet K10
1986 Chevrolet K10 Suburban
1986 Chevrolet K5 Blazer
1986 GMC Jimmy
1987 Chevrolet Blazer
1987 Chevrolet G10
1987 GMC Jimmy
1988 Chevrolet Blazer
1988 Chevrolet G10
1988 Chevrolet K1500
1988 GMC Jimmy
1988 GMC K1500
1989 Chevrolet Blazer
1989 Chevrolet G10
1989 Chevrolet K1500
1989 Chevrolet S10 Blazer
1989 GMC Jimmy
1989 GMC K1500
1990 Chevrolet Blazer
1990 Chevrolet G10
1990 Chevrolet K1500
1990 Chevrolet S10 Blazer
1990 GMC Jimmy
1990 GMC K1500
1991 Chevrolet Blazer
1991 Chevrolet G10
1991 Chevrolet K1500
1991 Chevrolet S10 Blazer
1991 GMC Jimmy
1991 GMC K1500
1992 Chevrolet Blazer
1992 Chevrolet G10
1992 Chevrolet K1500
1992 Chevrolet K1500 Suburban
1992 Chevrolet S10 Blazer
1992 GMC Jimmy
1992 GMC K1500
1992 GMC Yukon
1993 Chevrolet Blazer
1993 Chevrolet G10
1993 Chevrolet K1500
1993 Chevrolet K1500 Suburban
1993 Chevrolet S10 Blazer
1993 GMC Jimmy
1993 GMC K1500
1993 GMC Yukon
1994 Chevrolet Blazer
1994 Chevrolet G10
1994 Chevrolet K1500
1994 Chevrolet K1500 Suburban
1994 Chevrolet S10 Blazer
1994 GMC Jimmy
1994 GMC K1500
1994 GMC Yukon
1995 Chevrolet Blazer
1995 Chevrolet G10
1995 Chevrolet K1500
1995 Chevrolet K1500 Suburban
1995 Chevrolet Tahoe
1995 GMC Jimmy
1995 GMC K1500
1995 GMC Yukon
1996 Chevrolet Blazer
1996 Chevrolet K1500
1996 Chevrolet K1500 Suburban
1996 Chevrolet Tahoe
1996 GMC Jimmy
1996 GMC K1500
1996 GMC Yukon
1997 Chevrolet Blazer
1997 Chevrolet K1500
1997 Chevrolet K1500 Suburban
1997 Chevrolet Tahoe
1997 GMC Jimmy
1997 GMC K1500
1997 GMC Yukon
1998 Chevrolet Blazer
1998 Chevrolet K1500
1998 Chevrolet K1500 Suburban
1998 Chevrolet Tahoe
1998 GMC Jimmy
1998 GMC K1500
1998 GMC Yukon
1999 Chevrolet Blazer
1999 Chevrolet K1500
1999 Chevrolet K1500 Suburban
1999 Chevrolet Tahoe
1999 GMC Jimmy
1999 GMC K1500
1999 GMC Yukon
2000 Chevrolet Blazer
2000 Chevrolet Tahoe
2000 GMC Jimmy
2000 GMC Yukon
2000 GMC Yukon XL 1500
2001 Chevrolet Blazer
2001 Chevrolet Tahoe
2001 GMC Jimmy
2001 GMC Yukon
2001 GMC Yukon XL 1500
2002 Chevrolet Blazer
2002 Chevrolet Tahoe
2002 GMC Yukon
2002 GMC Yukon XL 1500
2003 Chevrolet Blazer
2003 Chevrolet Tahoe
2003 GMC Yukon
2003 GMC Yukon XL 1500
2004 Chevrolet Blazer
2004 Chevrolet Tahoe
2004 GMC Yukon
2004 GMC Yukon XL 1500
2005 Chevrolet Blazer
2005 Chevrolet Tahoe
2005 GMC Yukon
2005 GMC Yukon XL 1500
2006 Chevrolet Colorado
2006 Chevrolet Tahoe
2006 Chevrolet Trailblazer
2006 Chevrolet Trailblazer EXT
2006 GMC Canyon
2006 GMC Yukon
2006 GMC Yukon XL 1500
2006 Hummer H3
2007 Chevrolet Colorado
2007 Chevrolet Tahoe
2007 Chevrolet Trailblazer
2007 GMC Canyon
2007 GMC Yukon
2007 GMC Yukon XL 1500
2007 Hummer H3
2008 Chevrolet Colorado
2008 Chevrolet Tahoe
2008 Chevrolet Trailblazer
2008 GMC Canyon
2008 GMC Yukon
2008 GMC Yukon XL 1500
2008 Hummer H3
2009 Chevrolet Colorado
2009 Chevrolet Trailblazer
2009 GMC Canyon
2009 Hummer H3
2009 Hummer H3T
2010 Chevrolet Colorado
2010 GMC Canyon
2010 Hummer H3
2010 Hummer H3T
2011 Chevrolet Colorado
2011 GMC Canyon
2012 Chevrolet Colorado
2012 GMC Canyon
2015 Chevrolet Colorado
2015 GMC Canyon
