AEM X-Series 8-18V Volt Gauge

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall on the Volts gauge. All X-Series gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
X-Series Volt Gauge 8-18V, Black Bezel and Black Faceplate

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!

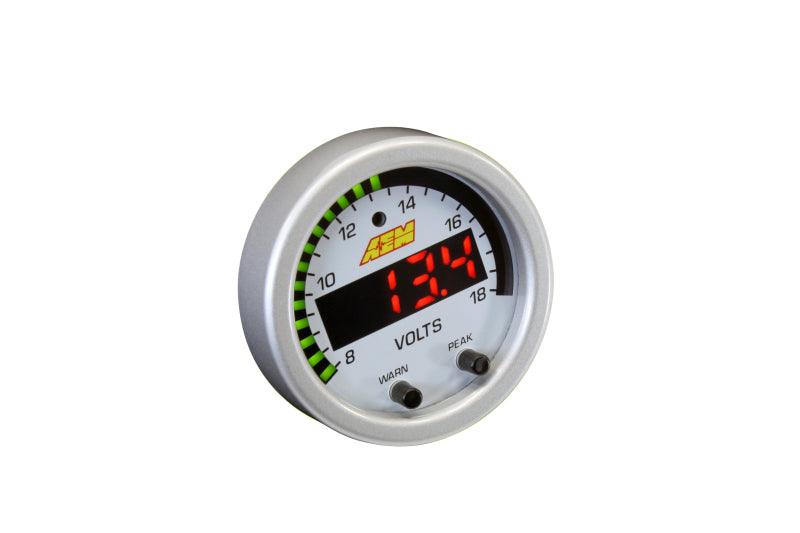

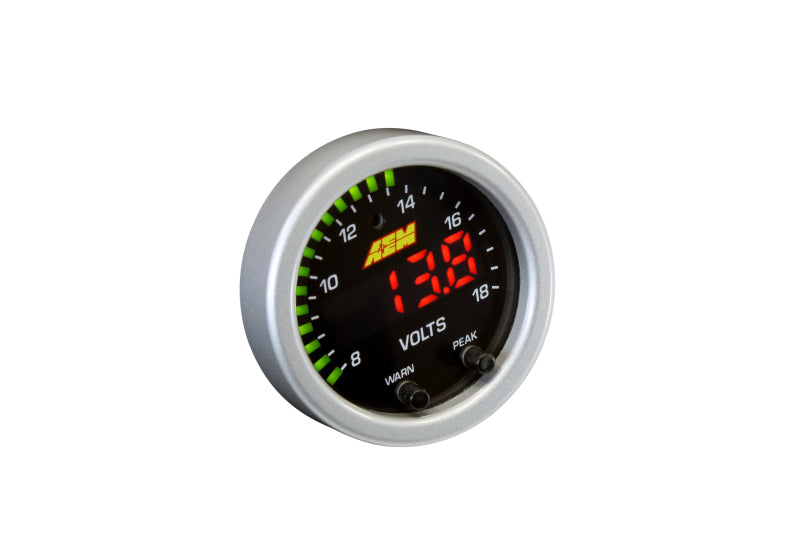

• Optional silver bezel with white faceplate accessory kit available (sold separately)


• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger


• 0-5v analog outputs for transmitting data to EMS or Data Logger


• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods


• 24 green outer LEDs for quick reference to system voltage


• Programmable LED is 87% larger than original AEM gauges


• Auto dimming sensor delivers ideal display brightness


• Positive locking connectors provide secure connection


• Peak/Recall via gauge face buttons
