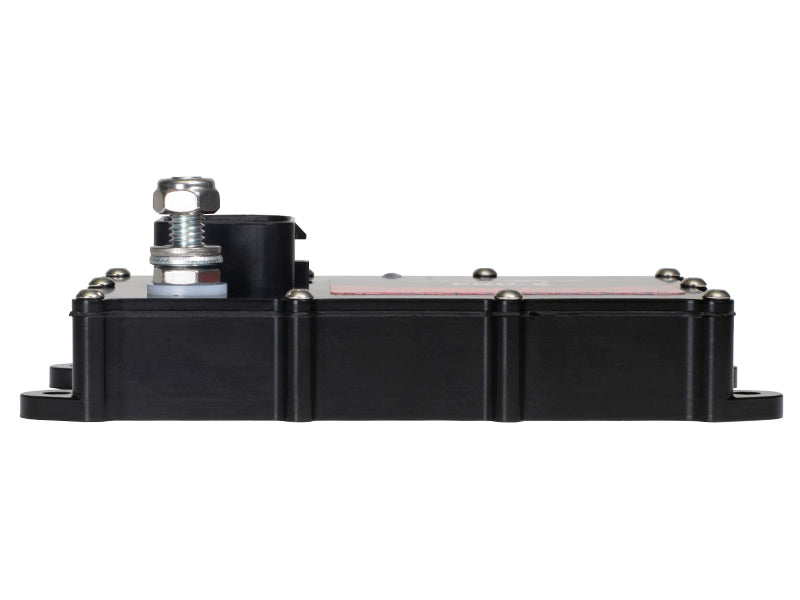

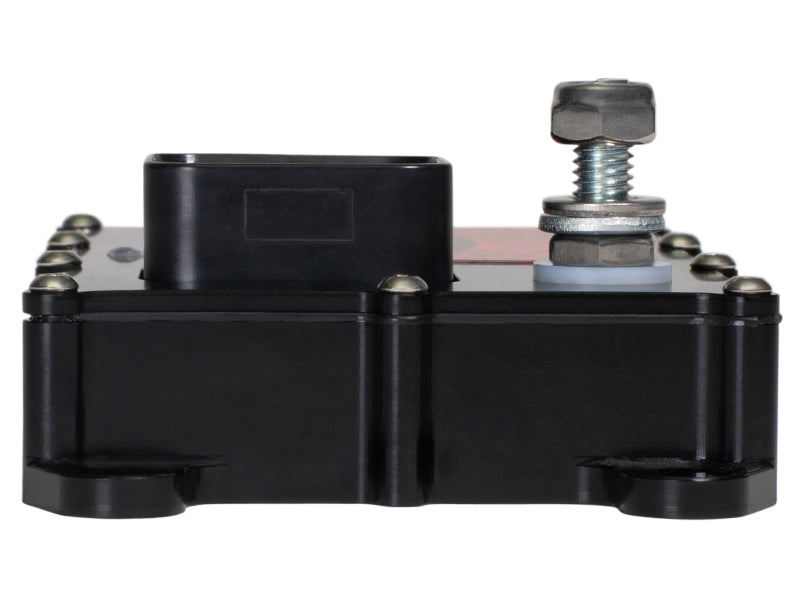

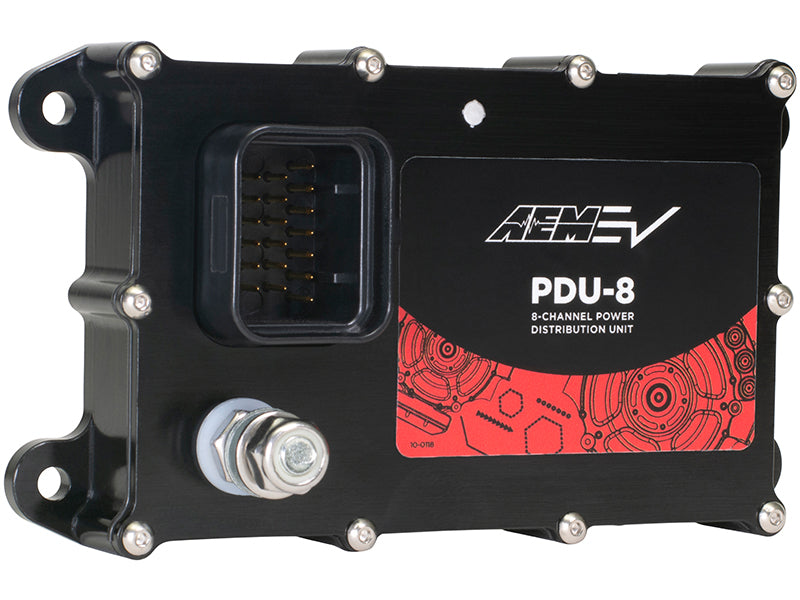

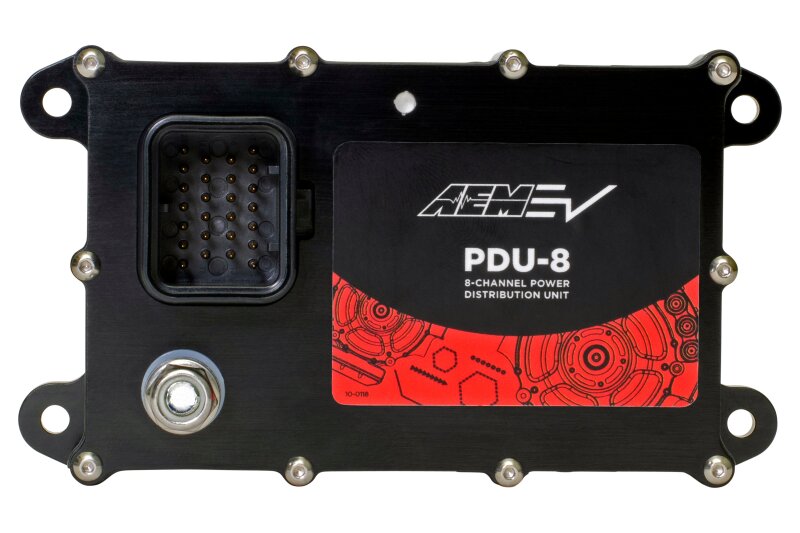

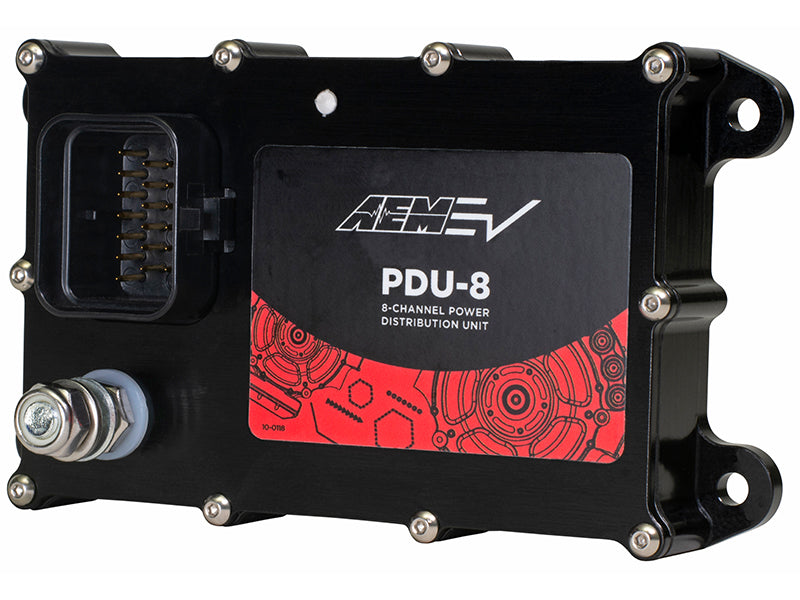

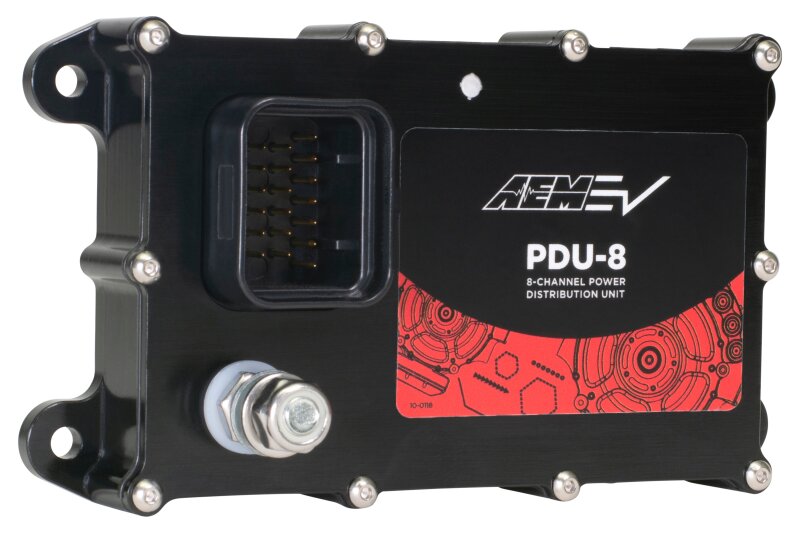

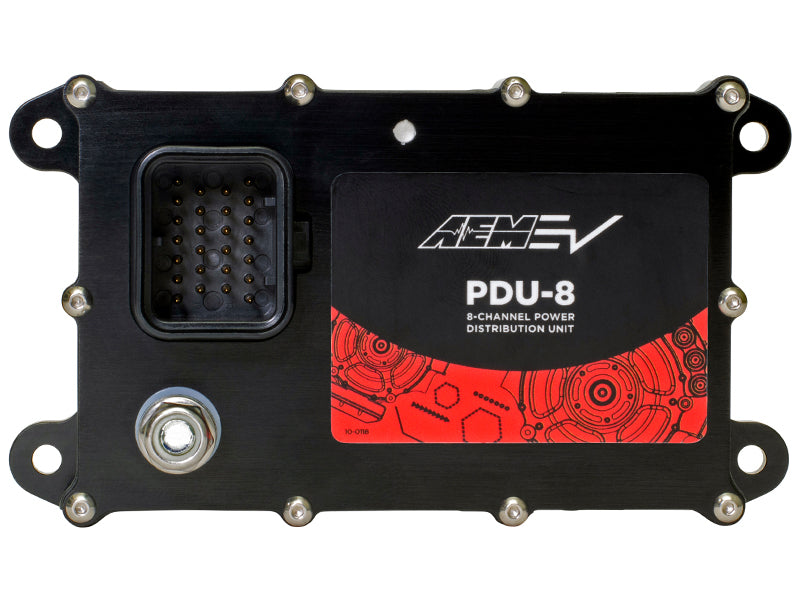

AEM EV 8 Channel CAN Driven Slave Type Power Distribution Unit (PDU)

Now available for internal combustion engines! The AEM EV PDU-8 is an eight channel Power Distribution Unit expansion device that gives you the power to program and control various switched devices using our ECU/VCUs, like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers, fuel pumps, and more. The ability to connect up to eight PDU-8s (four on AEM Dashes, and one on Infinity ECU's) on the same CAN bus network lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability. This CAN-based solid-state control module eliminates the need to install fuses and relays for the switched functions that it operates. The PDU-8 can easily be controlled by other CAN based controllers that support custom CAN settings, such as Motec, Link, FuelTech, Haltech, etc. Does work with Holley EFI if using the AEM dash display for logic based control.
PDU-8, 8 CHANNEL CAN PDU Four 20A and four 10A high-side 12V outputs
Fully-sealed, waterproof billet-aluminum enclosure

• Module is fully sealed for installation close to switched controls, simplifying wiring and reducing weight


• Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices


• Small size and lightweight (103x67x33mm/4.05x2.70x1.5", 190g/6.7oz/0.42lbs.)


• CAN-commanded PDU, no logic programming required for PDU operation


• Fully-sealed, waterproof billet-aluminum enclosure
