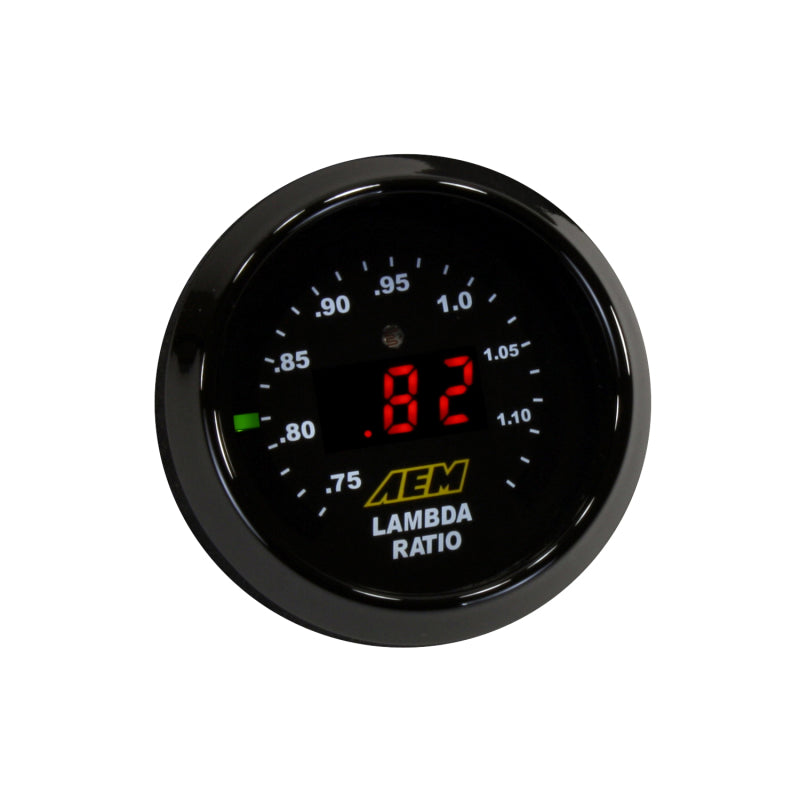

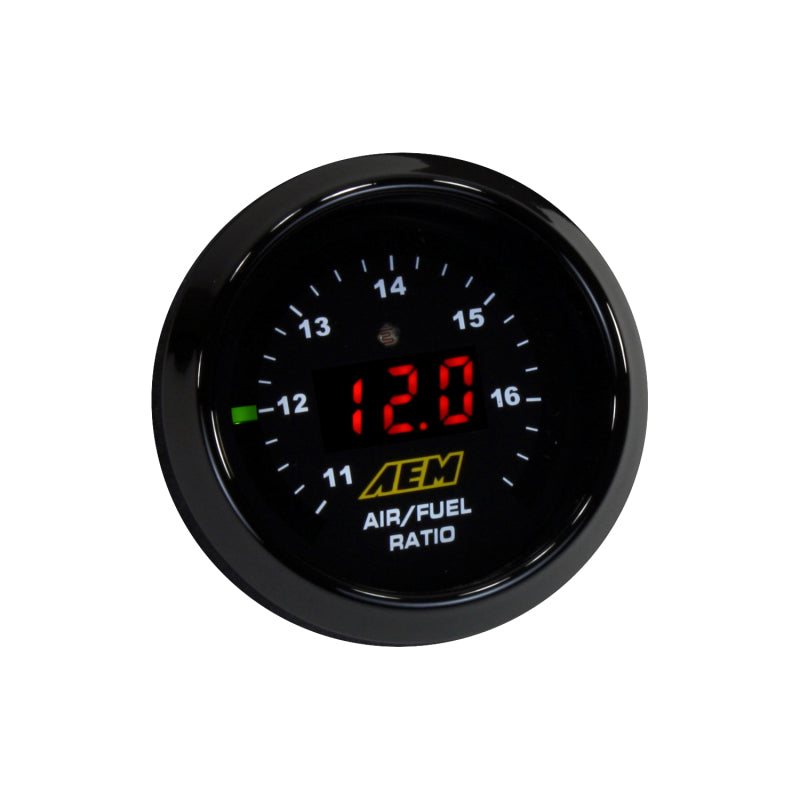

AEM Digital Wideband UEGO Gauge

The UEGO sensor gives the controller its speed and accuracy. The 4.9 LSU sensor used in the 30-4110 AEM Wideband UEGO AFR Controller Gauge has a faster light-off time and draws less current than the 4.2 LSU sensor used with AEM's 30-4100 Wideband UEGO Controller Gauge, which will be superseded to the 30-4110 gauge in August 2014. The 4.9 LSU sensor features the same fuel compatibility as the 4.2 LSU and NEVER requires free-air calibration when used with AEM's 30-4110 Wideband UEGO AFR Gauge. The 30-4110's 4.9 LSU sensor uses a different connector than the connector used with the 4.2 LSU sensors included with the original 30-4100 gauge controller. The sensors are not interchangeable between the two gauge controllers in any way, including changing connectors on the gauges.
The Original Wideband Air/Fuel Ratio Gauge w/Bosch LSU 4.9 Sensor

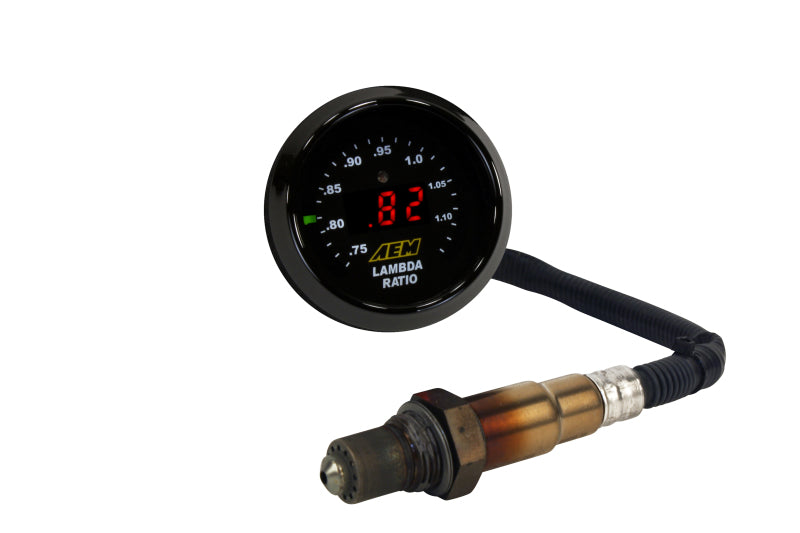

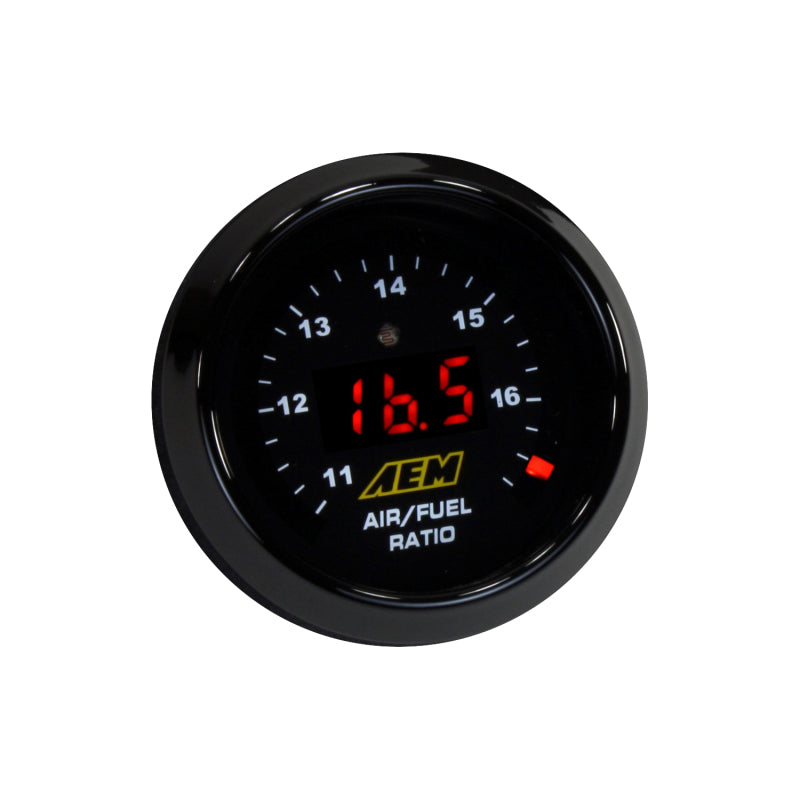

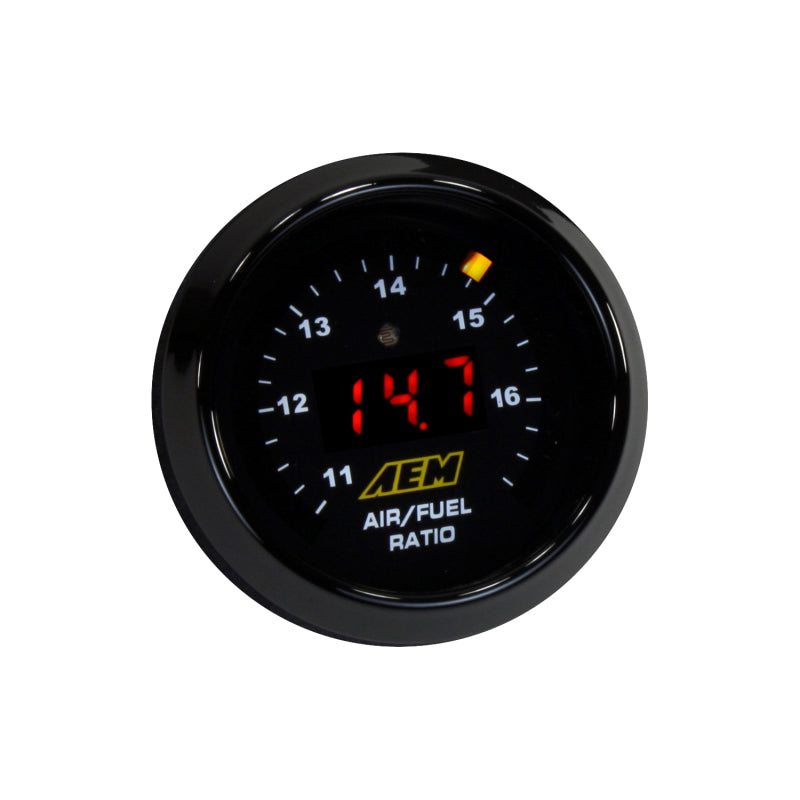

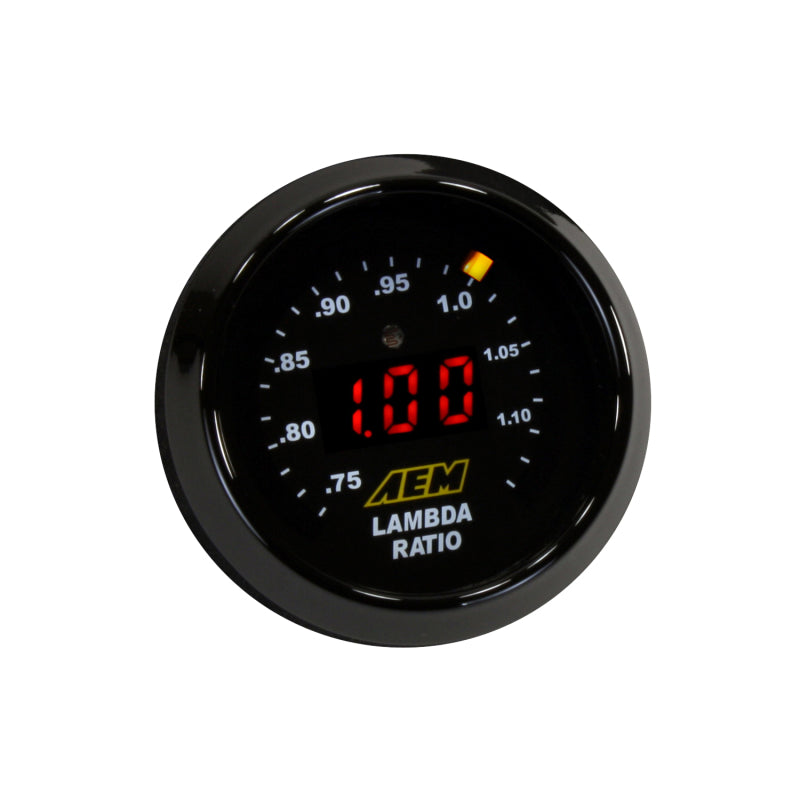

AEM's legendary Digital Wideband O2 AFR UEGO Gauge is a wideband UEGO air/fuel ratio controller (AFR) and gauge in one. It unites accuracy, speed and control with an easy to read, digital LED display and sweeping LED "needle" that changes colors as AFR changes from rich to lean. NOTE: The 30-4100 Wideband UEGO Gauge Controller that uses the 4.2 LSU sensor will be superseded to the 30-4110 Wideband UEGO Gauge Controller that uses the 4.9 LSU sensor in August 2014. Instructions for the 30-4100 will still be available in the Instructions tab after this change. WHAT IS A WIDEBAND UEGO AIR/FUEL CONTROLLER? AEM's Wideband UEGO (Universal Exhaust Gas Oxygen, pronounced "You-Way-Go") Controllers are powerful, cost-effective tuning tools that allow users to accurately monitor the Air/Fuel Ratio (AFR) of their engine. WHY USE A WIDEBAND AIR/FUEL CONTROLLER? Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned. WHAT IS FREE-AIR CALIBRATION? Some of our competitors require that you frequently perform a free-air calibration procedure to calibrate their O2 sensors. This process involves removing the sensor from the bung while still connected to the controller device, then waving the sensor in the air so it can read atmospheric O2 levels. We use 4.9 LSU sensors in our wideband controllers. Our sensors are individually laboratory-calibrated and never require free air calibration!

• Interchangeable black and white faceplates included for customizing gauge appearance (digital gauges only)

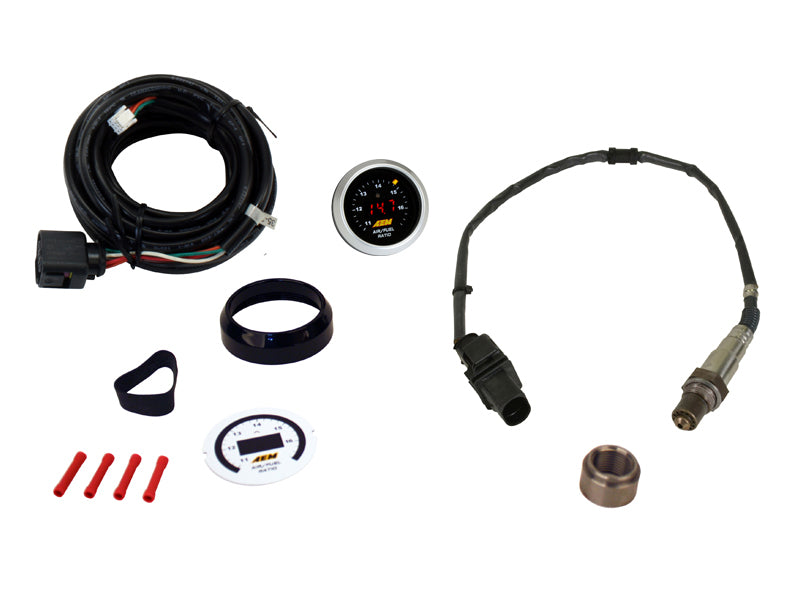

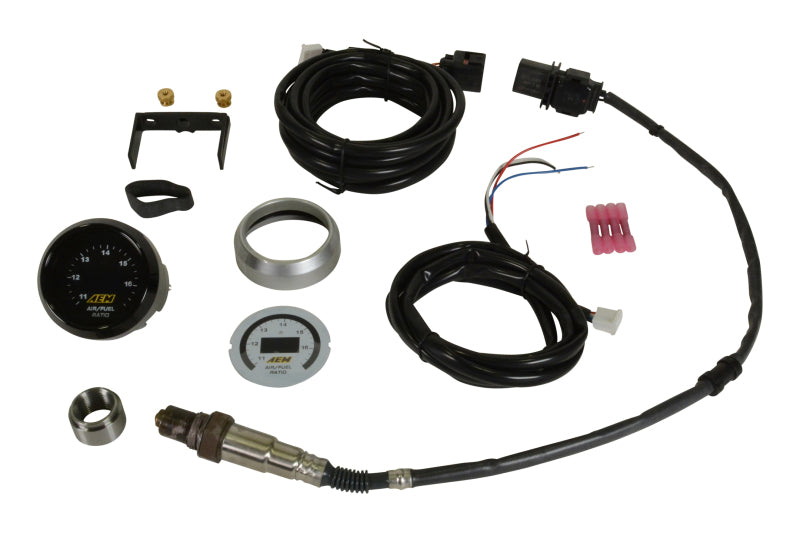

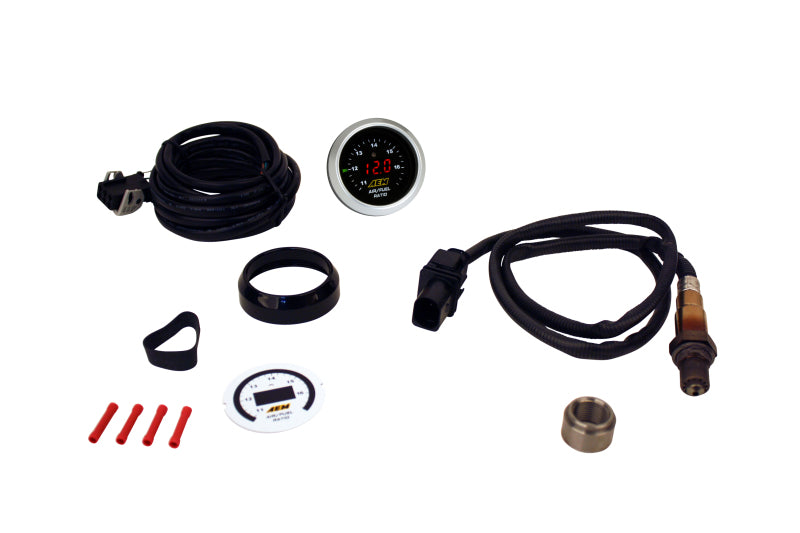

• 4.9 LSU wideband sensor and weld-in bung included (PN 30-4110)


• Interchangeable black and white faceplates included


• Interchangeable black and silver bezels included


• No free air sensor calibration required, ever


• 0-5v analog output (10-20 AFR range only)


• 52mm (2-1/16") gauge housing
