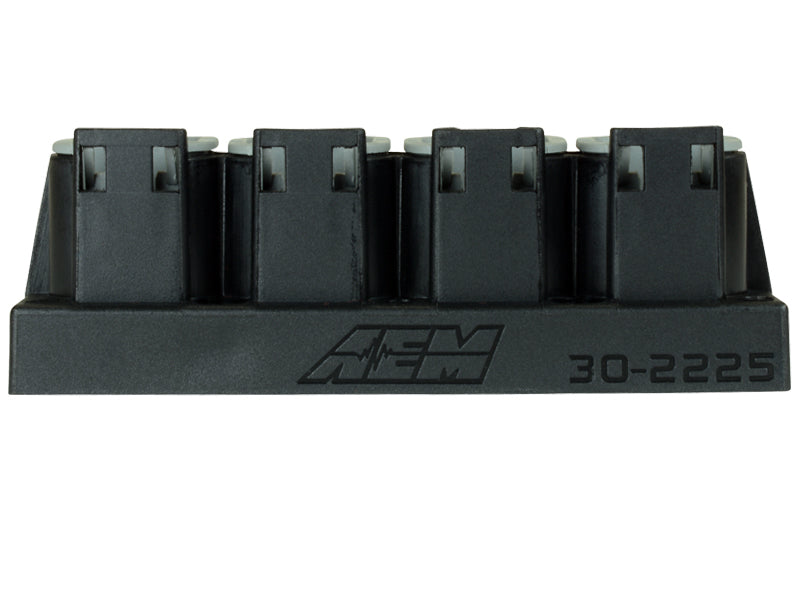

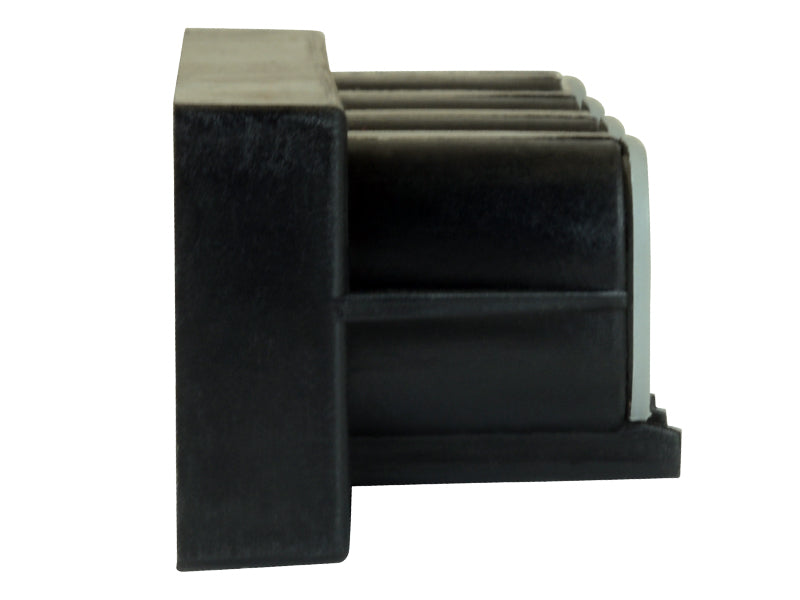

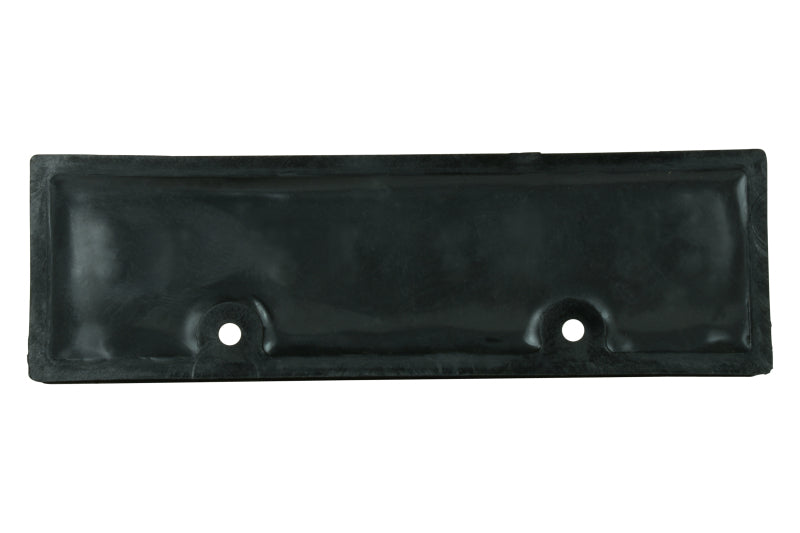

AEM 4 Port AEMnet Can Hub

AEM's 4 Port AEMnet CAN Hub is the perfect solution for connecting multiple AEMnet CAN bus-enabled devices together. This convenient Module provides a central docking station for four AEMnet cables via 4-way DTM-style housings and can provide power to all of the connected devices on the Hub through a single port (3A max current capacity - NOT for use to power UEGO sensor heaters). Users can daisy-chain two 4 Port AEMnet CAN Hubs together for a total of 6 connected devices.
4 Port AEMnet CAN Hub eliminates the need to daisy-chain multiple AEMnet devices together using “Y” cables, which eliminates wiring clutter and keeps everything on the bus organized in one central location.

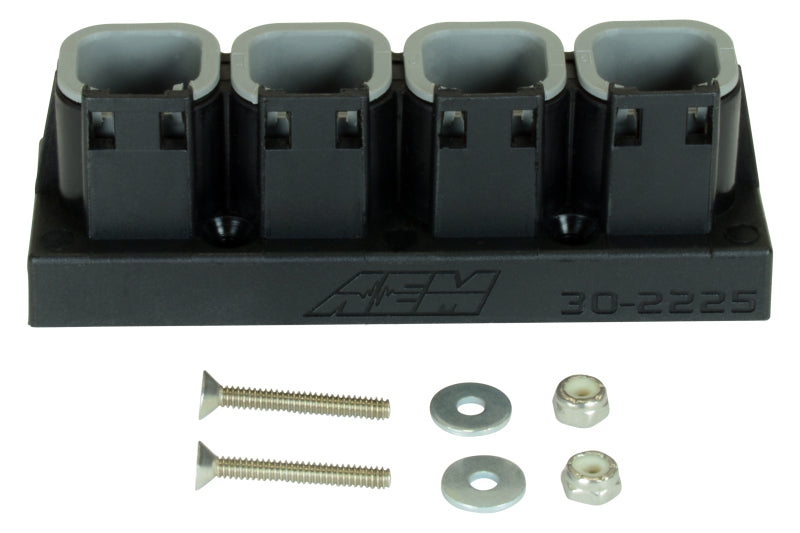

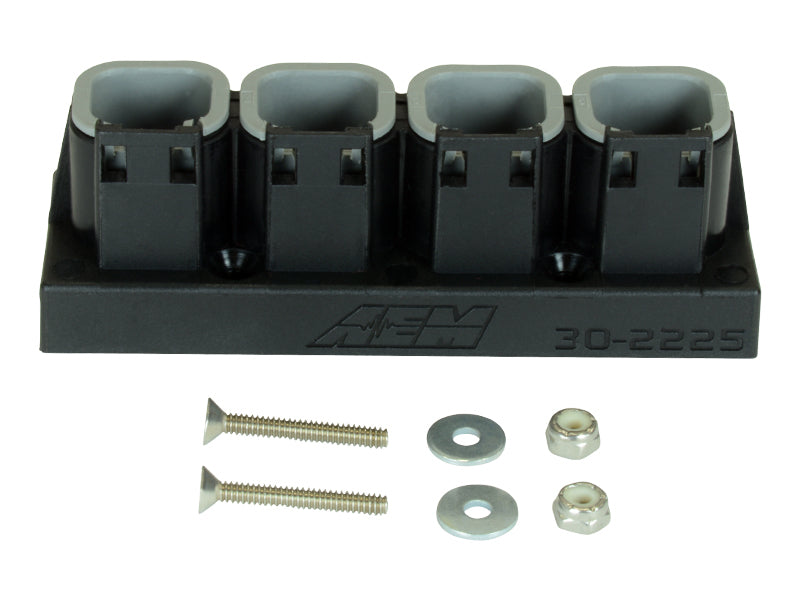

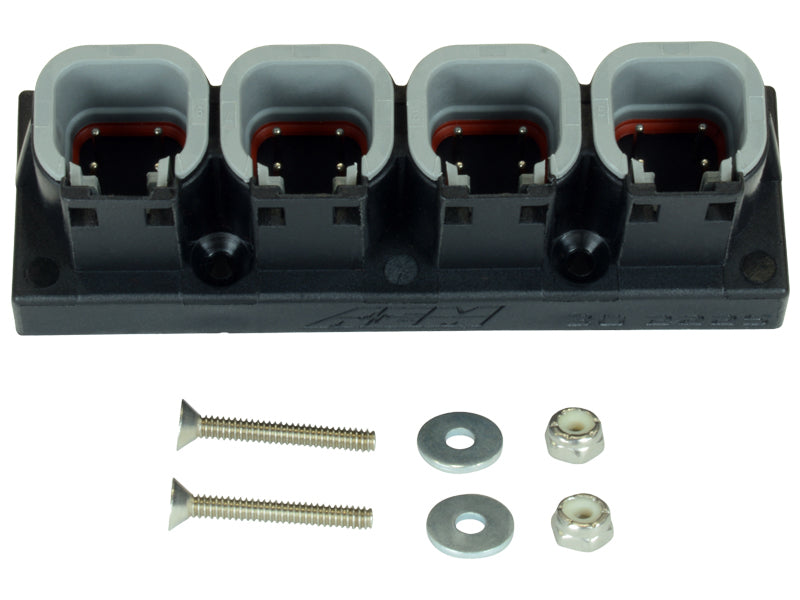

• Mounting hardware included (two 4-40 x 7/8" flat head screws, two 4-40 x 0.375" washers and two 4-4 x 9/64" Nylock nuts)


• Easily connect and power multiple AEMnet CAN devices from a central docking station!

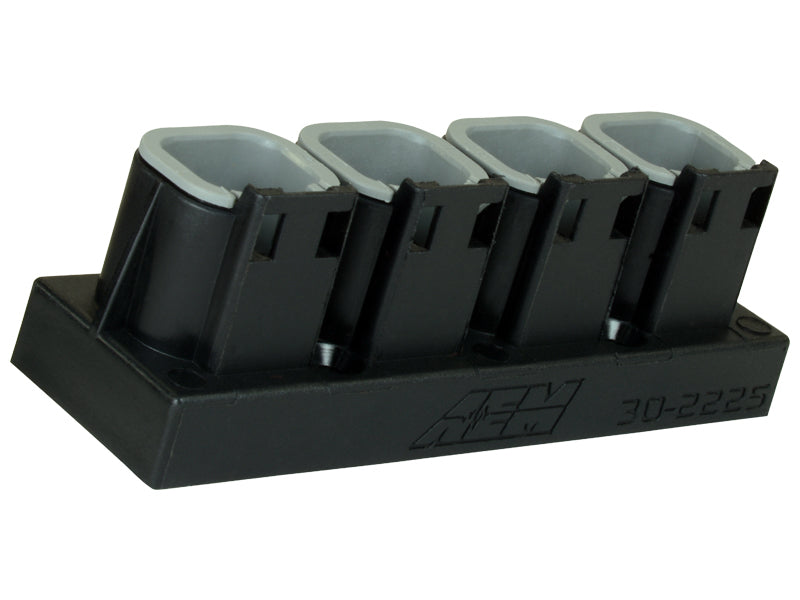

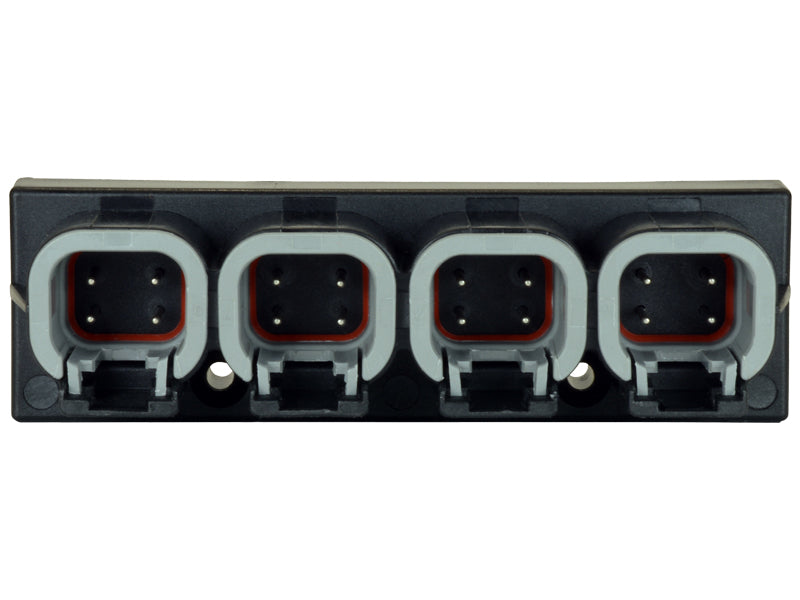

• Four integrated 4-way DTM-style housings provide reliable AEMnet CAN connections


• Compact enclosure - 3.45" (87.63mm) Long x 1.18" (29.85mm) Tall


• Safe for engine bay mounting - IP67-rated enclosure


• Daisy chain two Hubs to connect six AEMnet Devices
