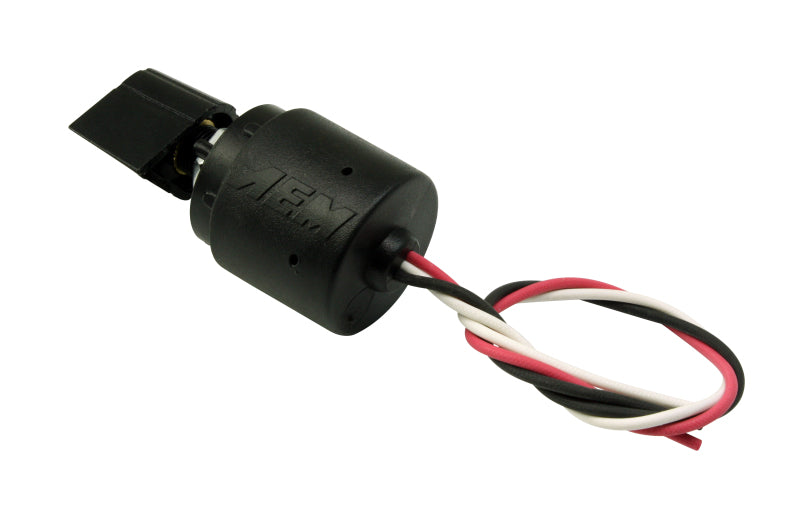

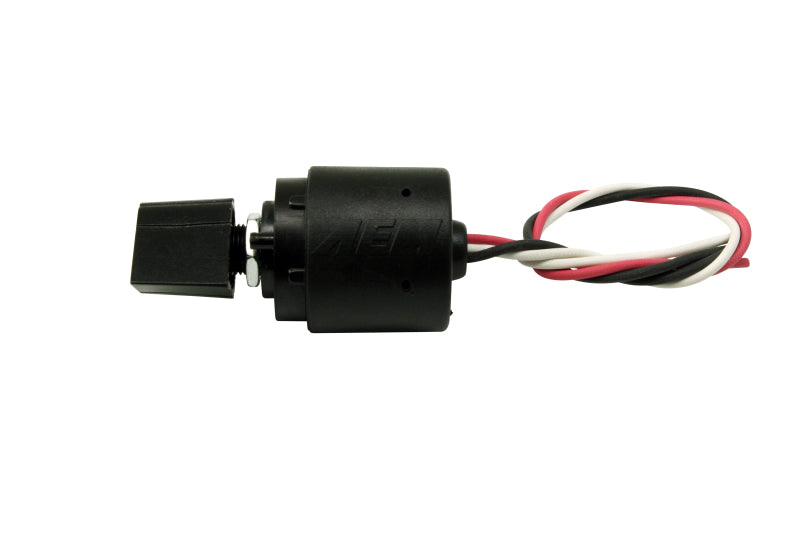

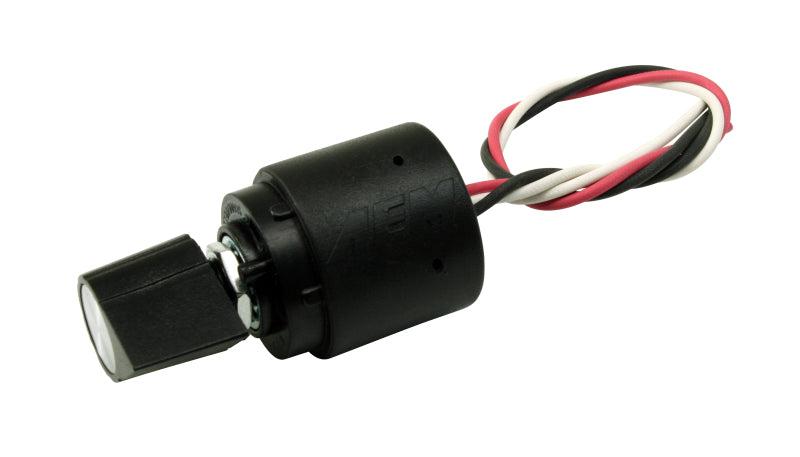

AEM 12 Position Universal Trim Pot

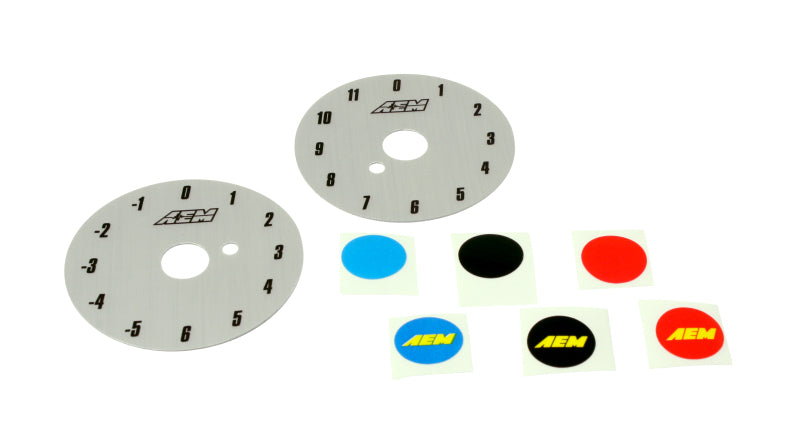

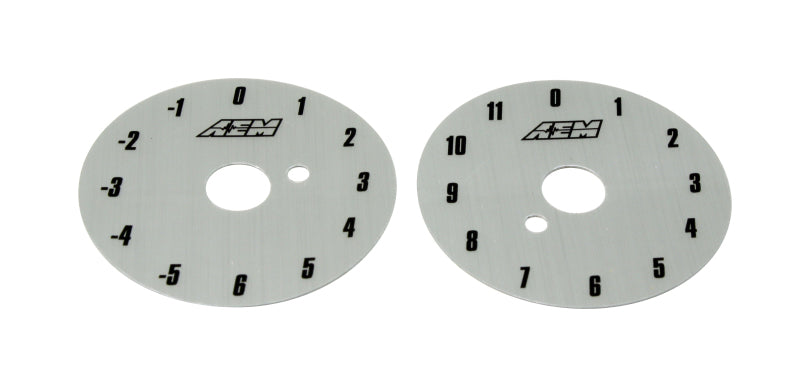

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

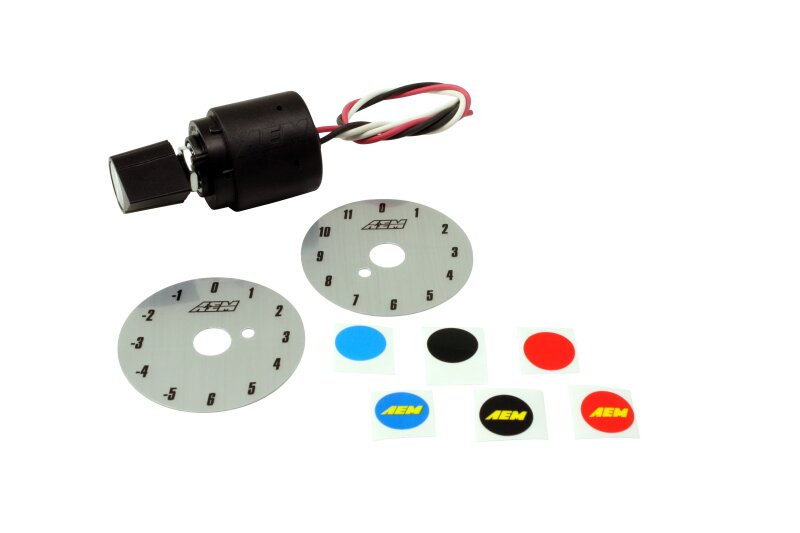

Universal 12 Position Trim Pot, Includes Trim Pot and Decals.

• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)


• 12 Position Trim Pot Performance Specifications


• Knob Set Screw: 1/16" Allen


• Total Resistance: 14.3KO


• Cycles Minimum: 10,000


• Supply Current: 5 Vdc


• Degree Rotation: 330


• Mounting: 3/8" Hole


• Jam Nut: 1/2" Hex


• Positions: 12
