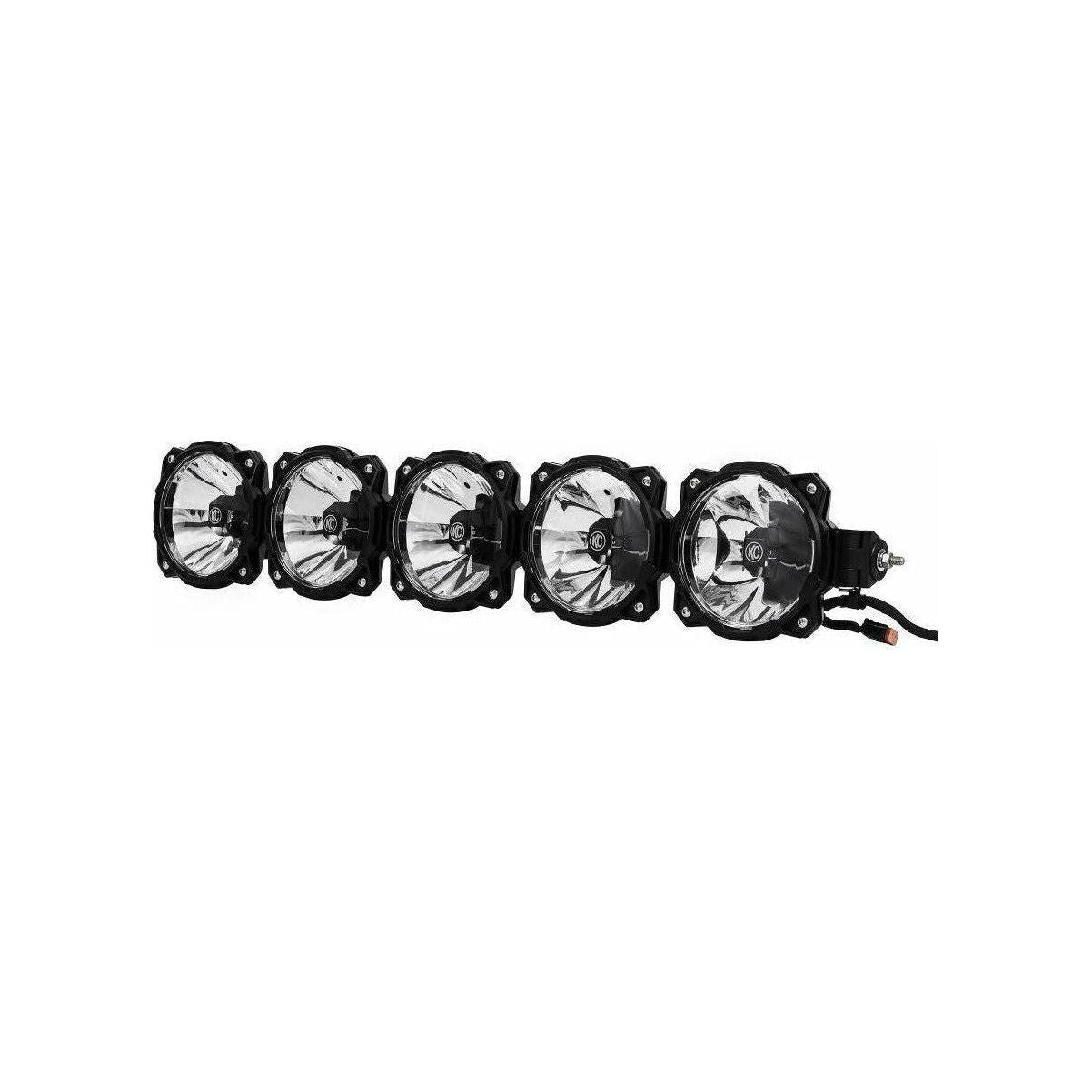

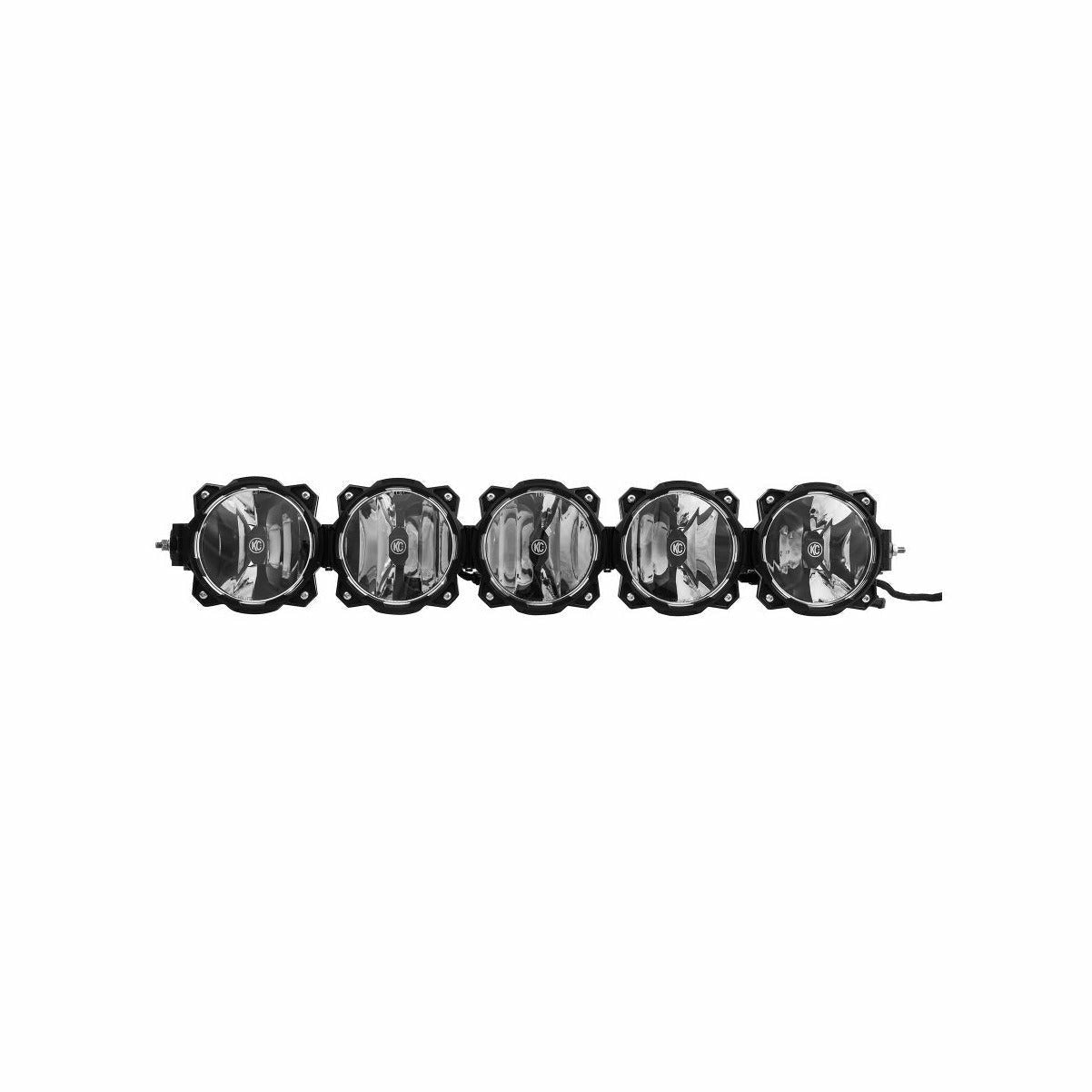

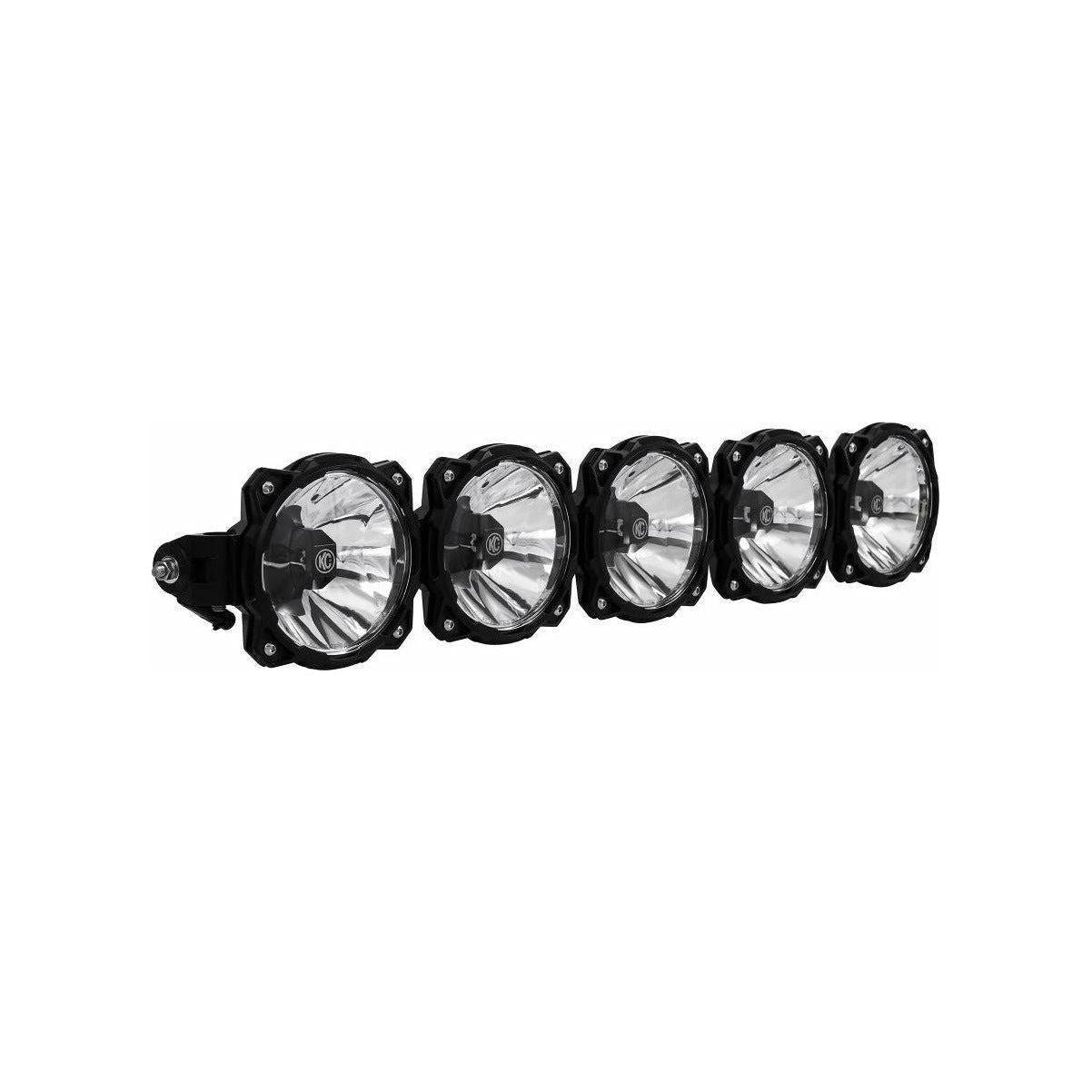

Polaris RZR (2014-2018) 32" Pro6 Gravity LED Light Bar System (Combo Beam)

This Gravity LED Pro6 5-light Combo Bar kit includes the patented Infinity Ring System, factory Polaris roll cage mounting brackets hardware, and complete wiring harness. Brackets only compatible with factory Polaris RZR roll cage.

Features:

• Powered by Gravity® LED G6 optical inserts – efficient, powerful, patented
• Patented Infinity Ring™ system enables the conversion of the Pro6 from straight to radius format in seconds
• Signature KC modular design is expandable to different widths
• Extremely high output with very low amperage draw
• Multiple G6 beam patterns available – Spot, Driving, Wide-40

Light Performance:

• Raw Lumens: 11,500 lm
• Lux @ 10 Meters: 4,200 lx
• Candela: 420,000 cd
• Beam Distance (Meters): 1,296m

Specifications:

• Wattage: 100W
• Amp Draw: 8.15A
• Voltage: 9-32V
• Dimensions: H - 6.06" x D - 3.33" x W - 32.875"

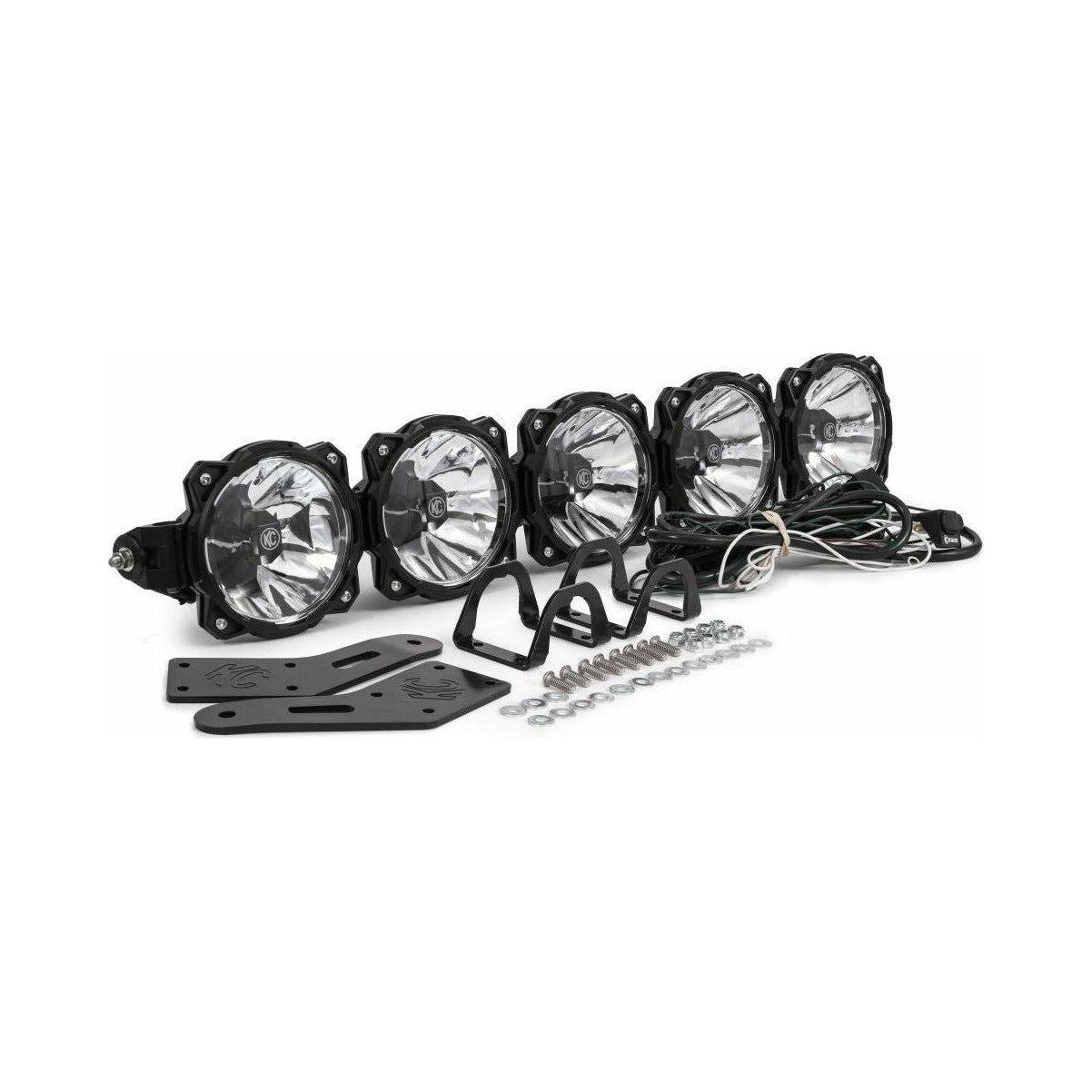

Includes:

• (1) Pro6 LED Light Bar
• (5) Light Covers - Black w/ Yellow KC Logo
• Mount Brackets and Hardware for OE Polaris RZR Factory Roll Cage
• Deluxe Wiring Harness with 30 amp LED Switch

PERFORMANCE GRAVITY® LED OPTICS
Patented Gravity® LED G6 optical inserts provide exceptional efficiency and light output. 20W, G6 optics are available in Spot, Driving, and Wide-40 patterns

INFINITY RING™ SYSTEM
The patented Infinity Ring™ system provides a race-proven, adjustable linking system featuring expandable widths, modular beam shape, and a radius or straight setting between each ring

EASY INSTALL ON OE POLARIS RZR ROLL CAGE
This Pro6 LED Light Bar system comes with specifically designed Polaris RZR overhead tube clamp brackets that securely mount to stock factory roll cages.

RACE-PROVEN STRENGTH & DURABILITY
Inspired by endurance racing and tested by KC athletes worldwide, the Pro6 is set to break all performance barriers while providing the most durable, reliable, and scalable light bar design available today

VEHICLE FITMENT

• Polaris RZR 900 (2015-2018)
• Polaris RZR XP 1000 (2014-2018)
• Polaris RZR XP Turbo (2016-2018)
